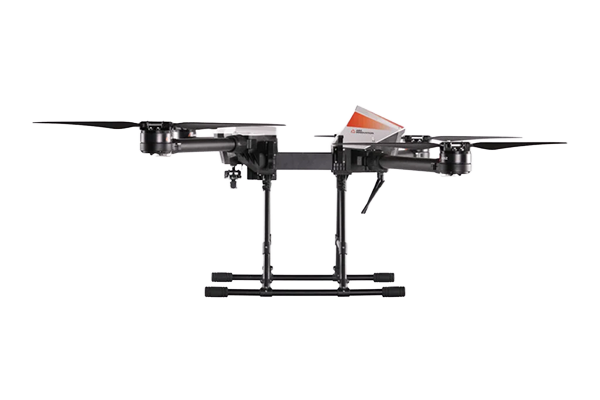

The M12 is a versatile, compact drone designed for R&D, training, and experimental applications. With a payload capacity of up to 12 kg (≈ 26.5 lb), it is an ideal platform for universities and businesses to carry sensors, cameras, or delivery systems. Key features include multiple communication ports (I2C, UART, CAN, USB) and flexible power outputs, along with customizable battery options to optimize flight performance. The M12 is CE-certified (C4 label) and features a foldable frame for easy transport. Built on open-source software and designed for cost-effective maintenance, it offers a reliable, customizable solution for complex projects.
Advantages
CAPACITY AND PERFORMANCE
Payload capacity: up to 12 kg (≈ 26 lb)
Max. Take-off mass: 29 kg (≈ 64 lb)
Light weight: 13.8 kg (≈ 30.4 lb) (total weight with battery)
Max. level speed: 20 m/s (≈ 44.7 mph)
Flight time: 15-50 minutes (depending on payload weight)
Max flight altitude: 120 m (≈ 394 ft)
APPLICATION TECHNOLOGY
Payload dimensions: 600 x 600 x 600 mm (≈ 23.6 x 23.6 x 23.6 in)
Versatility: Modular payload attachability
Connectivity: 4 x PWM & 6 x Relay signal outputs
Power source: Configurable 0-50V output
NAVIGATION AND SAFETY
Precision: Dual-RTK, centimeter-level accuracy (±10 cm / ≈ 3.9 in)
Camera: FHD resolution, Forward + Downward FPV
Signal range: ~3.5 km (≈ 2.2 mi) effective range
Obstacle Avoidance: According to pregenerated shapefiles
OPERATIONS AND SECURITY
Data Privacy: No data transmission to remote servers
Battery charging: Min. 11-minute rapid charging
Flexibility: Open source software code
Flight planning: Area SHP and line SHP file compatibility
