How Falcon & Swift Geomatics Uses the Trinity Pro to Monitor Oil Sands Infrastructure

 Case Study

February 24th, 2025                  4 minutes read

Company

Falcon & Swift Geomatics

Drone

Quantum Systems Trinity Pro

with Sony RX1 RII

Location

Anzac, Alberta

Canada

Application

Survey & Mapping

Oil sands operations cover vast expanses, spanning hundreds of square kilometers, and are typically located in environments that present challenges such as hazardous terrain and harsh weather conditions. Traditional methods of monitoring, such as manned aircraft, or ground-based inspections, can be costly and difficult to deploy on a regular basis in such environments. With the previous challenges in mind, leading geospatial services provider Falcon & Swift Geomatics decided to leverage the Trinity Pro Fixed-Wing VTOL UAV (Unmanned Aerial Vehicle).



Falcon & Swift Geomatics was seeking a drone capable of longer flight times and greater coverage to support BVLOS (beyond visual line-of-sight) operations, a goal that made the Trinity Pro even more attractive. Rated to fly near and over people (a requirement for certain BVLOS operations) the Trinity Pro was the perfect tool.

"We selected the Trinity Pro because of the distance it can cover in 1 battery (100 km in ideal
conditions, ~85 km in our real field conditions)".

Xue Yan Chan

Remote Sensing Specialist at Falcon & Swift Geomatics.

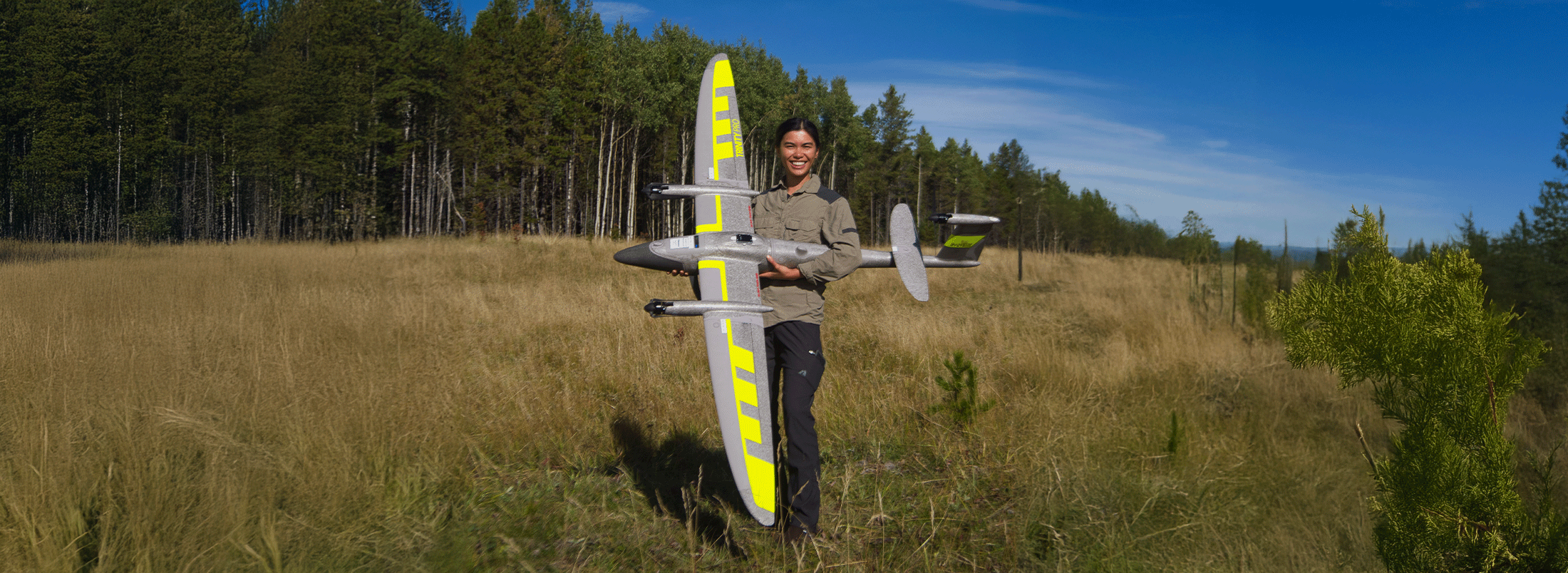

Project Overview

In October 2024, Falcon & Swift Geomatics conducted a mapping project near Anzac, Alberta, focusing on oil sands infrastructure and encroaching vegetation within the boreal forest. The project covered 920 hectares, including 40 kilometers of linear features such as pipelines, saline wells, and well sites. A mix of corridor and area mapping was required to capture the area of interest, characterized by a mosaic of forested upland stands and sparsely treed wetlands.



The team used the Trinity Pro UAV, which enabled efficient mapping with advanced terrain-following capabilities for consistent GSD on undulating terrain. Vertical take-off and landing (VTOL) functionality proved invaluable in the forested environment, allowing operations from tight clearings.

Why the Trinity Pro?

The Trinity Pro's increased VTOL height provided additional safety when operating near 30-meter-tall trees. The project spanned three days, with seven flights conducted in total. Each mission lasted approximately one hour, utilizing one battery. Operations were performed within visual line-of-sight (VLOS), but staging in forested areas presented visibility challenges. To overcome this, the team sought vantage points in sparsely treed wetlands or natural areas of higher relief.



The Trinity Pro's PPK (Post-Processed Kinematic) capabilities played a crucial role in the project's success by delivering highly accurate georeferenced data. This technology significantly reduced the need for ground control points (GCPs), achieving centimeter-level precision while saving time and effort that would have been spent placing GCPs in difficult-to-navigate terrain.



The onboard RGB camera, the Sony RX1RII, further elevated the quality of the data collected. Featuring a 42.4 MP full-frame sensor, the camera provided exceptional resolution and sharpness. Its lightweight design perfectly complemented the Trinity Pro, enhancing flight efficiency and enabling the team to cover the area with fewer missions.

Data Processing Workflow

The collected data underwent a detailed processing workflow to ensure high-quality deliverables:



1. QBase:

• Geotagged images using a PPK workflow for improved positional accuracy; this process utilized GNSS base stations recording raw static data, which were then processed through PPP to get an accurate ground point to PPK the drone data.


2. Pix4Dmapper:

• Conducted initial processing, including keypoint computation, automatic aerial triangulation, and bundle block adjustment.
• Performed point cloud densification.
• Generated an orthomosaic to create a seamless georeferenced map.


3. LAStools and LidR R Package:

• Classified the densified photogrammetry point cloud into categories (e.g., ground, vegetation, etc.).
• Rasterized the point cloud into digital elevation models (DEMs).

"The project was only possible due to the support of the Measur team.
Measur provided the equipment and training that allowed
our team to take the Trinity Pro out to the field and complete this project. They provided
excellent customer service, even providing us assistance via phone call when we were in
the field, ensuring that we could complete the job".

Xue Yan Chan

Remote Sensing Specialist at  Falcon & Swift Geomatics.

Deliverables

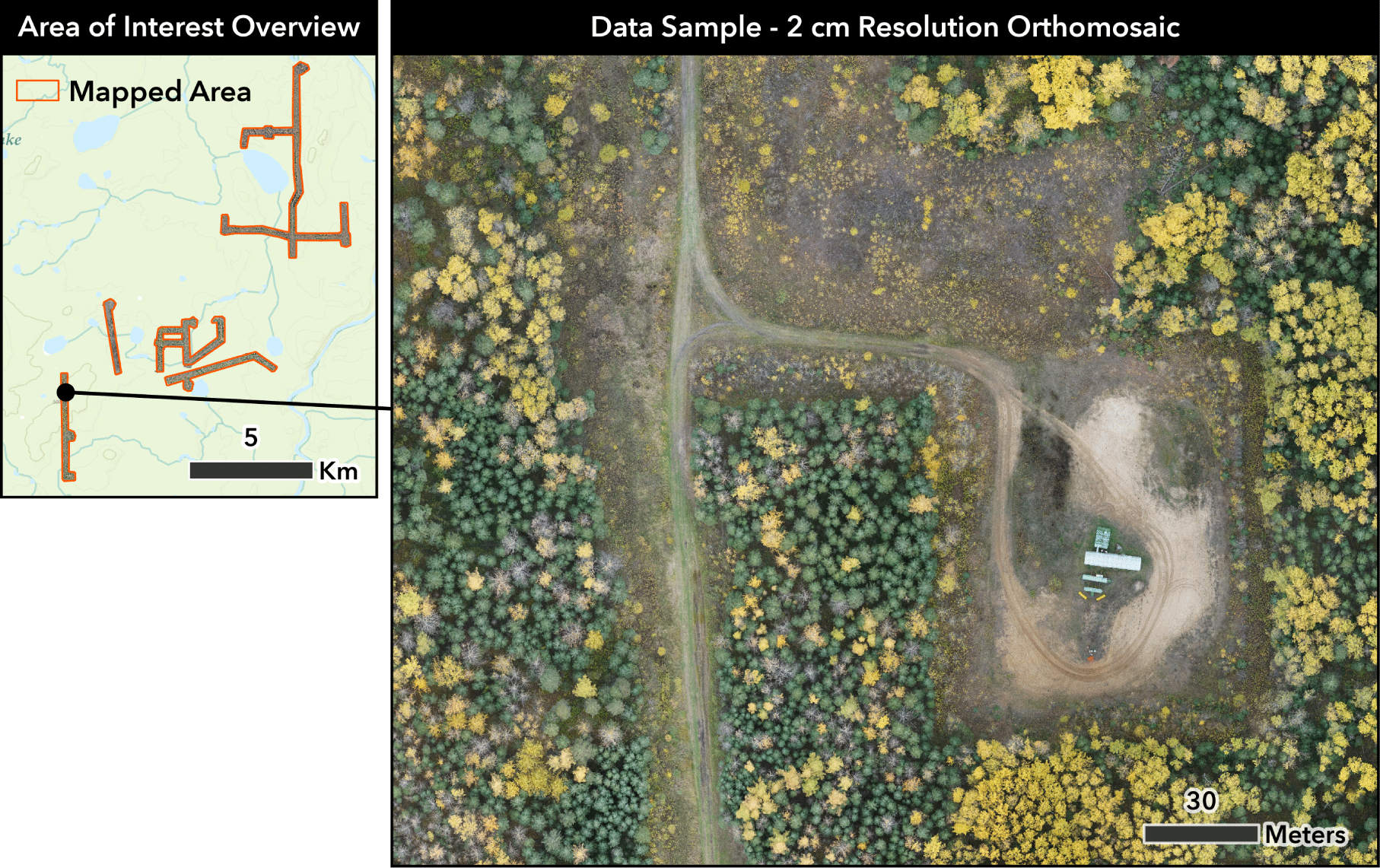

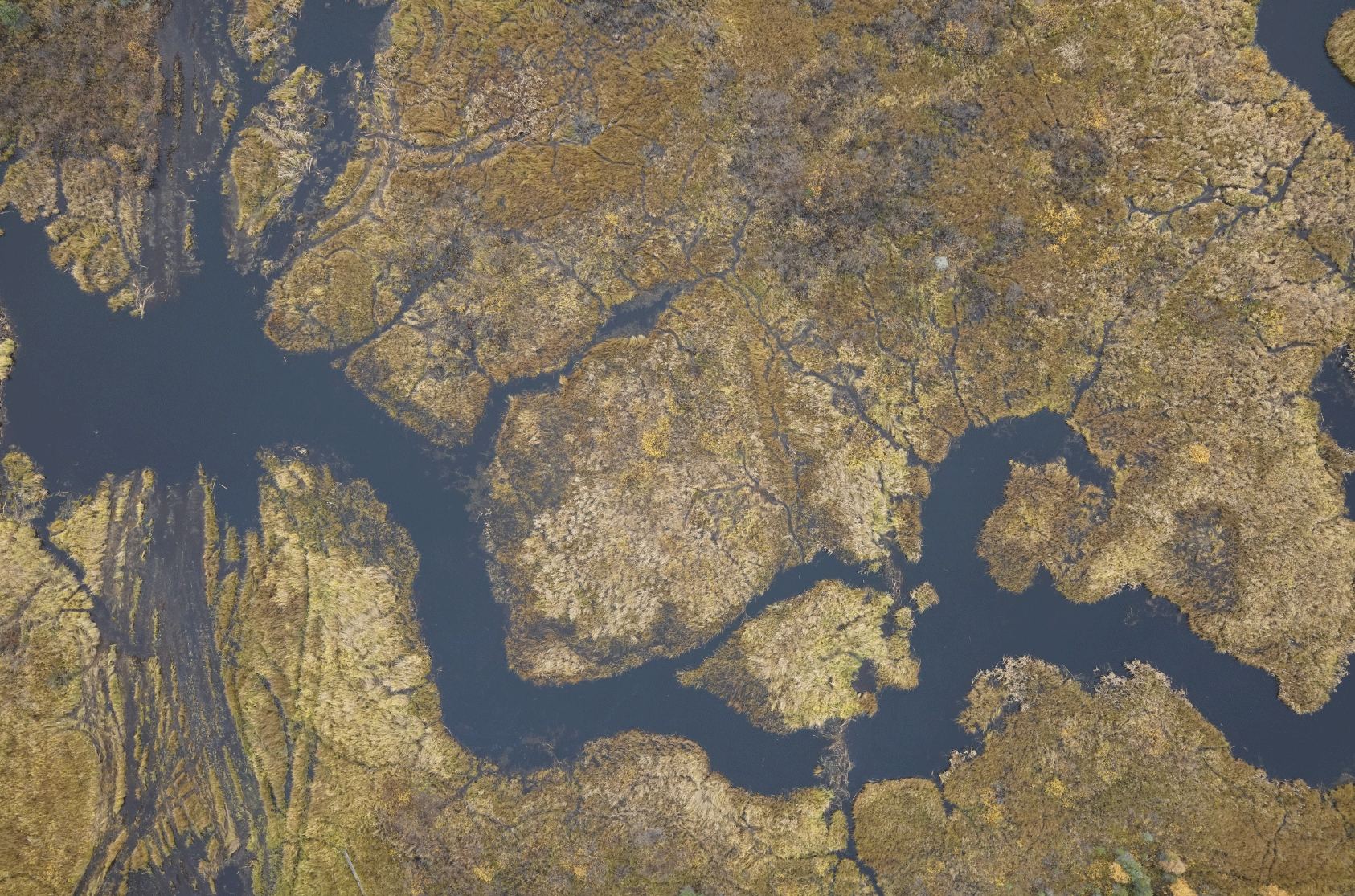

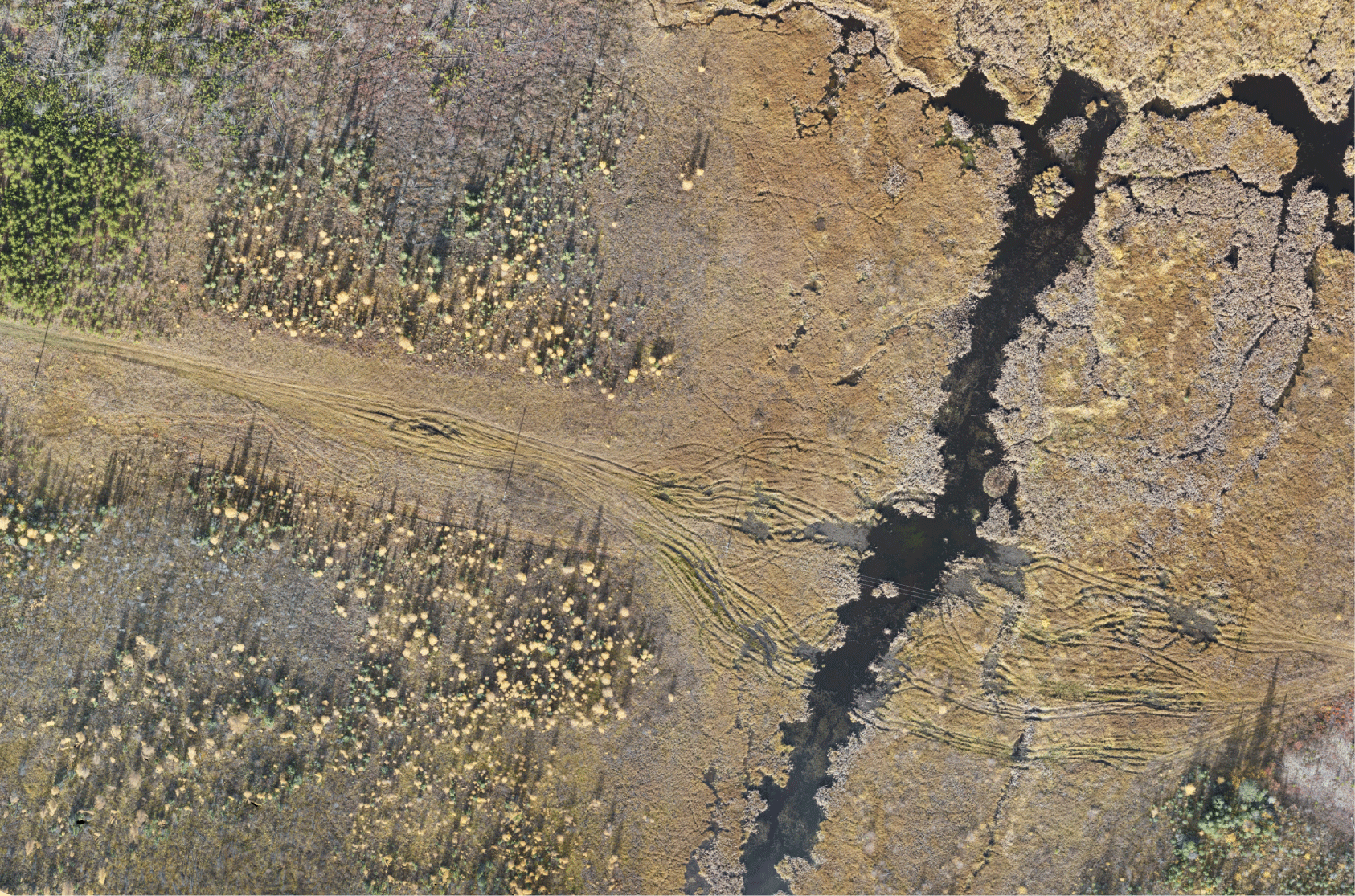

Utilizing the Sony RX1RII camera, featuring a 42-megapixel, 35 mm full-frame sensor, Falcon & Swift Geomatics produced the following project deliverables:

  • True-colour orthomosaics at a 2 cm resolution, providing detailed maps.
  • Digital elevation models (DEMs) at a 10 cm resolution, derived from the classified photogrammetry point clouds.

Conclusion

By utilizing the Trinity Pro, Falcon & Swift Geomatics significantly enhanced its oil sands infrastructure monitoring capabilities. The drone's robust performance, including its impressive 90 min flight time, advanced sensor suite, and ability to operate in harsh environments has transformed how geospatial data is captured and analyzed in the energy sector.



The high-resolution orthomosaics created a detailed digital archive of infrastructure and the surrounding landscape, offering a snapshot in time that can be revisited and analyzed repeatedly. This archive supports multitemporal analysis, enabling comparisons across time and providing insights for future challenges or applications. By preserving every detail in a digital format, the data becomes a versatile resource for environmental monitoring, regulatory compliance, and operational planning.
