Next-Gen Drone Tools for SAR & Public Safety: DJI Zenmuse S1 and V1

April 30th, 2025

3 minutes read

TABLE OF CONTENTS

Zenmuse S1: Precision Spotlight with LEP Technology

Zenmuse S1 Vs Wingsland Z15

What’s New & Better in the S1?

Zenmuse V1: High-Fidelity Long-Range Aerial Broadcasting

Purpose-Built for Critical Operations

DJI has strengthened its enterprise drone ecosystem with the launch of two mission-critical payloads: the Zenmuse S1 spotlight and the Zenmuse V1 loudspeaker. Engineered for public safety, search and rescue, emergency response, and night-time operations, these payloads offer enhanced operational performance through precision lighting and long-range audio communication.

By fully integrating with DJI’s existing platforms and control software, the S1 and V1 showcase DJI’s shift toward purpose-built payloads that enhance field team effectiveness in real-time, high-pressure scenarios.

DJI Zenmuse S1: Precision Spotlight with LEP Technology

The Zenmuse S1 is DJI’s first internally developed aerial spotlight to leverage LEP (Laser Excited Phosphor) technology. Unlike traditional LED-based lights, LEP produces an extremely narrow and focused beam capable of illuminating targets over 500 meters away with minimal light diffusion. This makes it ideal for operations that require long-range visibility and target pinpointing, such as search missions in remote or hazardous areas.

Key Features of Zenmuse S1:

• LEP beam with high central illuminance (35 lux @ 100 m)

• Switchable FOV (4° to 15°) for adjustable beam width

• 4 lighting modes: Low beam, High beam, Dual beam, Strobe

• IP54 rating for dust and water resistance

• Full gimbal support for precise control via DJI Pilot 2

• Native compatibility with DJI RC Plus and Matrice 300/350 RTK

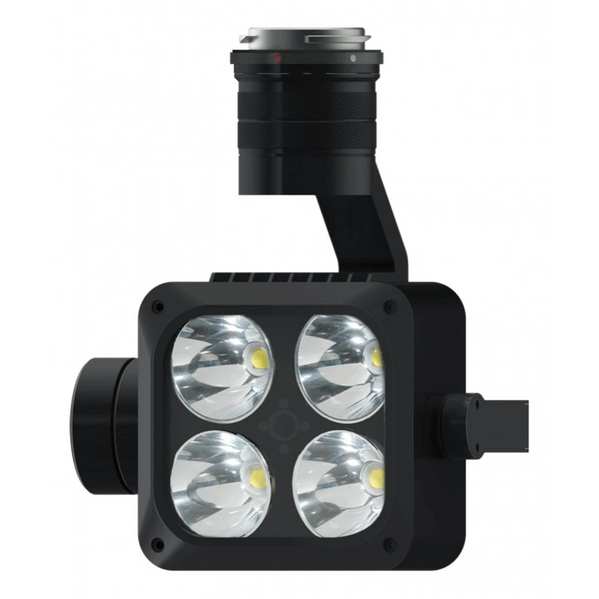

Zenmuse S1 Vs Wingsland Z15

The following table presents a detailed comparison between the DJI Zenmuse S1 and the earlier Wingsland Z15 spotlight system. It outlines the key differences in performance, lighting technology, integration, and durability.

Feature	Zenmuse S1 (2024)	Wingsland Z15 (2019)
Manufacturer	DJI (Zenmuse Series)	Wingsland (Third-party)
Lighting Technology	LEP (Laser Excited Phosphor)	LED-based
Max Brightness	10,000 lumens	10,200 lumens (claimed)
Effective Illumination Range	500+ meters	~150 meters
Beam Type	Switchable: 4° to 15° FOV	Fixed Wide Beam (60° FOV)
Central Illuminance @ 100m	35 lux	~4–5 lux
Lighting Modes	Low, High, Both, Strobe	On/Off, Strobe
Gimbal Integration	Full gimbal mount with tilt/yaw	Static mount or limited tilt
Weight	0.76 kg	0.47 kg
Durability (IP Rating)	IP54 (Dust & Water Resistant)	IP44 (Splash Resistant)
Control Integration	Fully integrated with DJI Pilot 2	Limited, via SkyPort
Platform Compatibility	Matrice 300/350 RTK	Matrice 300/350 via SkyPort

DJI Zenmuse S1

$1,829.00

Wingsland Z15

$3,625.00

What’s New & Better in the S1?

• Far Superior Light Penetration: LEP technology provides laser-focused illumination, making it effective for locating individuals, reading signs, or inspecting assets in complete darkness at long distances.

• Tactical Lighting Modes: The addition of a strobe and dual-beam options makes it much more versatile for emergency and law enforcement tasks.

• DJI Integration: Unlike the Wingsland Z15, which required third-party software or limited SkyPort features, the S1 is fully integrated into DJI’s ecosystem (Pilot 2, RC Plus, payload SDK).

• Ruggedized for Harsh Conditions: Built for search and rescue, fire, and industrial response, IP54 means you can fly it in rain, dust, and wind.

DJI Zenmuse V1: High-Fidelity Long-Range Aerial Broadcasting

Complementing the S1 is the Zenmuse V1, a high-powered aerial loudspeaker designed for clear, intelligible audio transmission over long distances. It is especially valuable in disaster zones, riot control, evacuation procedures, and large-scale public events where ground-to-air communication can significantly enhance operational effectiveness.

Key Features of Zenmuse V1:

• Max sound pressure: 120 dB @ 1 meter

• Effective broadcast range: 500–700 meters

• Supports live speech, pre-recorded playback, and loop modes

• Built-in mic and recording for message monitoring

• Directional sound projection to minimize spillover

• IP55 rating for enhanced environmental protection

• Fully integrated with DJI Pilot 2 for live control and playback

Unlike basic speaker attachments, the Zenmuse V1 offers real-time voice transmission with feedback monitoring, ensuring that field personnel or civilians receive clear and timely instructions. Its directional projection reduces audio interference and improves clarity in complex environments.

DJI Zenmuse V1

$1,279.00

Purpose-Built for Critical Operations

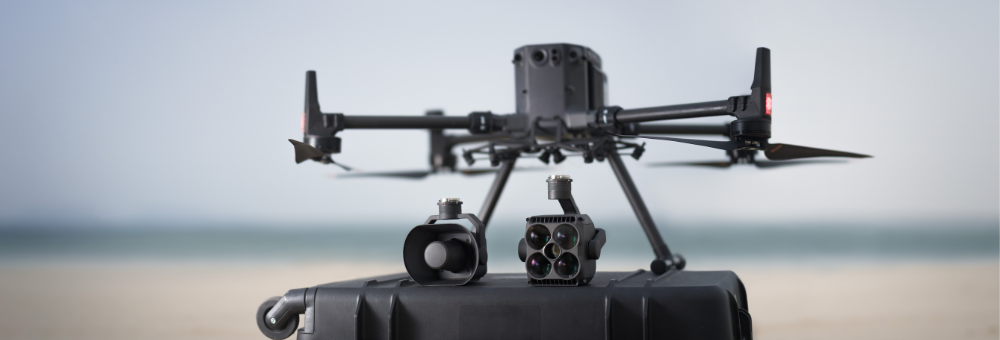

Together, the Zenmuse S1 and V1 form a complementary payload suite that supports night vision, target illumination, situational awareness, and direct public communication from the air. These tools are not just add-ons; they are central to DJI’s vision of a multi-role drone platform capable of supporting integrated, real-time action from the sky.

Whether it’s locating a missing hiker in the wilderness or broadcasting evacuation orders in a flood zone, these payloads provide essential capabilities that extend the functionality of DJI’s enterprise drones well beyond typical aerial photography.
