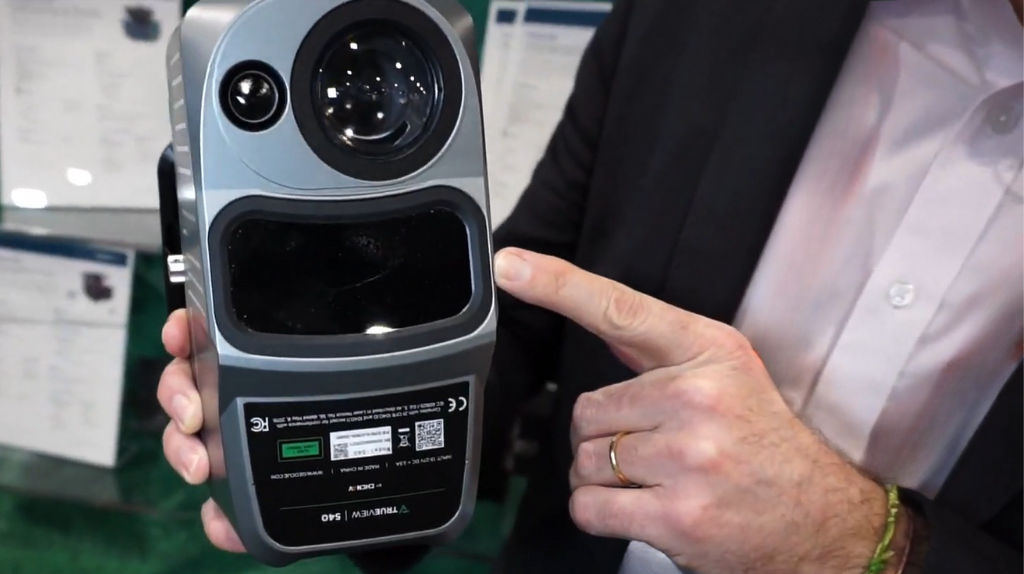

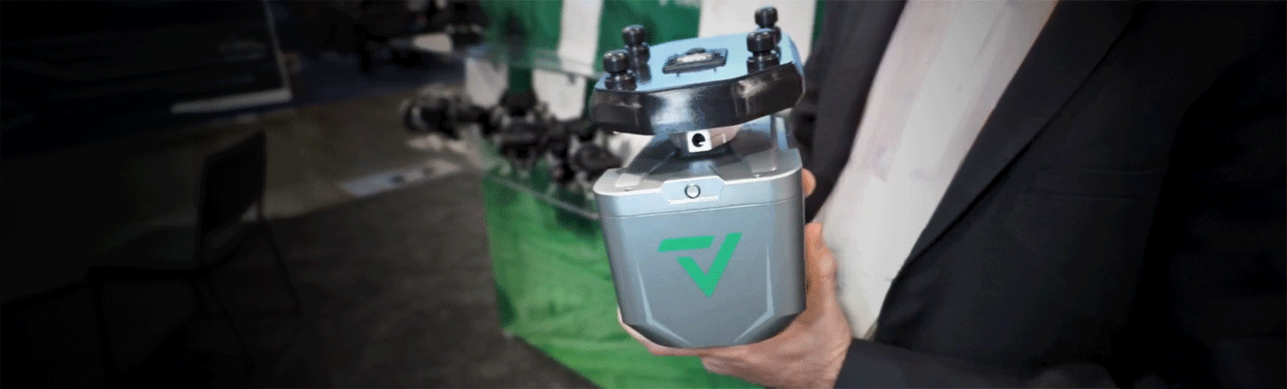

The TrueView 540 is a complete ecosystem of tightly integrated components, designed to eliminate the complexity of deploying high-grade LiDAR and streamline the path from field capture to final deliverables.
Laser Scanner
The TrueView 540 uses a CHCNAV single-beam laser scanner operating at a wavelength of 1535 nanometers. It offers a pulse repetition rate (PRR) of up to 500 kilohertz and supports up to eight returns per pulse. This combination ensures the system can collect dense and highly detailed point clouds, even through moderate vegetation.
Range Performance
With a usable range of 400 meters on targets with greater than 20 percent reflectivity, the TrueView 540 allows operators to fly at safe, efficient altitudes while still capturing high-quality returns. This extended range reduces the need for multiple flight lines and increases productivity, especially in large or inaccessible areas.
Precision and Accuracy
The system achieves a ranging precision of 5 millimeters and an accuracy of 15 millimeters, delivering point cloud data that supports survey-grade and engineering-grade applications. This level of reliability minimizes the need for repeat flights or extensive ground control, saving time and reducing cost.
GNSS/INS Navigation
The onboard CHC PPK navigation solution provides 10 to 20 millimeter positional accuracy, with orientation accuracy rated at 0.006 degrees for roll and pitch, and 0.019 degrees for heading. These specifications ensure consistent and accurate georeferencing across entire scan swaths, enabling precise modeling of ground surfaces, vertical structures, and complex terrain.
