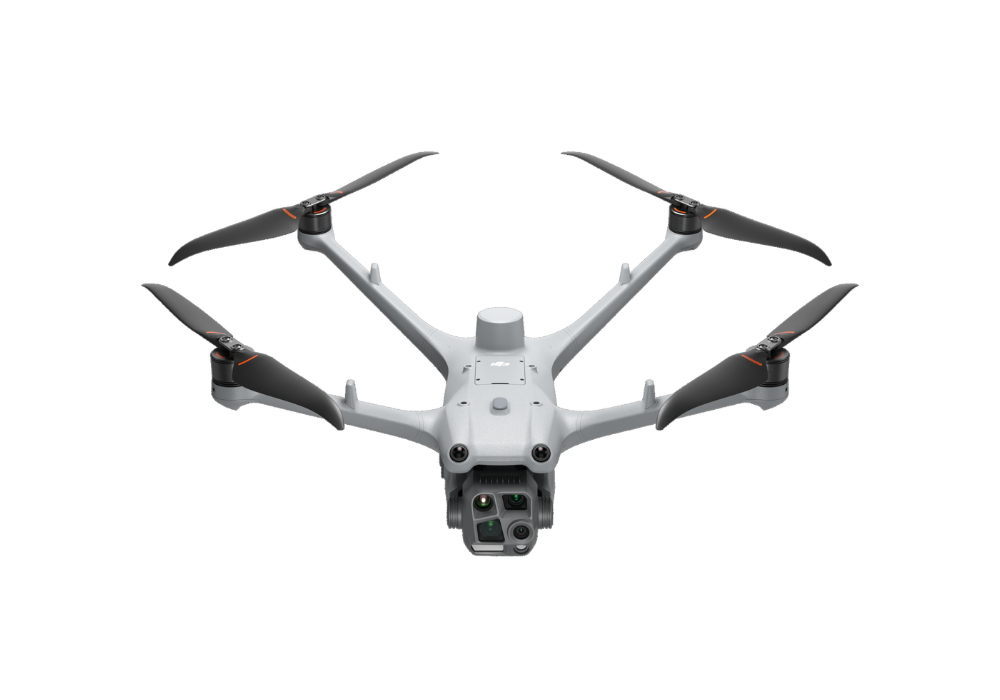

The Matrice 4TD is equipped with a versatile triple-camera system designed to deliver high-quality imaging across a range of distances. Its wide-angle camera features a 1/1.3-inch CMOS sensor with 48MP resolution, an f/1.7 aperture, and a 24mm equivalent lens, ideal for capturing broad overviews. The medium tele camera shares the same sensor and resolution but offers a narrower 70mm equivalent lens and an f/2.8 aperture, making it well-suited for mid-range inspections. For long-distance detail capture, the telephoto camera includes a 1/1.5-inch CMOS sensor, 48MP resolution, an f/2.8 aperture, and a 168mm equivalent lens. Together, these three cameras provide exceptional flexibility for inspections, surveillance, and detailed documentation.
54 Min
Max Flight Time
|
1/1.5″ CMOS
Tele Camera
|
48 MP
Medium Tele Camera
|
640 × 512
Thermal Resolution
|
1800 m
Laser Range Finder
|
Laser Range Finder
Complementing the imaging system is an integrated laser range finder, which ensures accurate aerial measurement and navigation. It offers a measurement range of up to 1800 meters at 1 Hz, with an oblique incidence range of 600 meters at a 1:5 angle.
Infrared Thermal Imaging
The Matrice 4TD is equipped with a high-resolution thermal camera for 24/7 situational awareness. It excels in applications like search and rescue, fire response, and night patrol.
-
Resolution: 640 × 512
-
Aperture: f/1.0
-
Focal Length: 53mm format equivalent
-
Sensor Type: Uncooled VOx Microbolometer
-
Modes: UHR (Ultra High Resolution) and High-Res Thermal Modes
Combined with a new NIR auxiliary light and IR-Cut Filter, the thermal system ensures operational capability in pitch-black or smoke-obscured environments.
|
|
|
|
Stabilized Telephoto Imaging
Telephoto zoom often introduces instability, but the Matrice 4TD overcomes this with upgraded stabilization technology.
• Foreground Stabilization: Keeps subjects crisp at 10x+ zoom
• Upward Gimbal Tilt: Up to 80° for bridge undersides and overhead structures
• Medium-Range Performance: Detect pins and cracks from 10m
• Long-Range Clarity: Read signage from up to 250m away
This makes it the perfect solution for vertical structure assessments and distant target inspections.
|
Extended Flight Time & Durability
With up to 54 minutes of forward flight and 47 minutes of hover time, along with a cruising speed of 15 m/s, it supports long-range operations, including 18 minutes of continuous flight at a 10 km radius. Its IP55 rating provides strong resistance against dust and water, allowing teams to operate confidently in rain, wind, or other harsh conditions without compromising functionality.
In addition to endurance, the Matrice 4TD is equipped with advanced obstacle sensing technology that combines rotating LiDAR and millimeter-wave radar. This enables detection of objects as small as 12mm wires at speeds up to 15 m/s and ensures precise navigation even in low-light or cluttered environments.
Matrice 4TD for the Dock 3
The DJI Matrice 4TD is designed to work seamlessly with the DJI Dock 3, offering autonomous flight, all-weather durability, precision landing, automated charging, and remote deployment. While optimized for the Dock 3 system, it’s also available as a standalone drone, allowing flexible use in various field operations. It features a compact, industrial-grade design, RTK positioning, and advanced autonomous capabilities.
Night Vision and NIR Capabilities
Designed for low-light performance, the Matrice 4TD offers multiple enhancements for visibility in darkness.
Night Scene Mode: Enables full-color night vision
IR-Cut Filter: Switches to black-and-white night vision for clarity
NIR Auxiliary Light: 6° field of view with 100m illumination range
These features enable effective operations in security, law enforcement, and critical infrastructure monitoring during nighttime hours.
Precision Surveying and Mapping
The Matrice 4TD supports a wide range of mapping operations with high-precision results.
• 5-Direction Oblique Photography
• 3-Direction Orthophoto Photography
• Real-Time Terrain Following
• Smart 3D Capture and Geometric Routes via DJI FlightHub 2
These features empower professionals in urban planning, construction, and topographic documentation to create detailed models quickly and accurately.
Mountain Operations & Airborne Relay
The Matrice 4TD is purpose-built for rugged environments like mountains and forests where signal loss is common.
• DJI RC Plus 2 Controller Compatibility
• Onboard Relay Drone Functionality
• Extended Transmission Range without 4G
• Ideal for Search & Rescue and Infrastructure Inspection
The airborne relay capability allows one drone to maintain a line-of-sight signal while the other continues operating farther away, ensuring uninterrupted communication.
Intelligent Features via DJI FlightHub 2
When paired with DJI FlightHub 2, the Matrice 4TD becomes an automated, data-rich aerial tool for enterprise operations.
• Automated Route Planning: Smart 3D, Slope, and Geometric Routes
• Change Detection: Compare historical and live data
• Smart Track: Automatically follow targets
• Virtual Cockpit: Live situational control
• Fast Deployment: Reach a point 1 km away at 100m height in just 100 seconds
• Transmit While Flying: Stream low-latency footage to ground teams in real time
These tools are perfect for environmental monitoring, disaster response, and infrastructure lifecycle management.
