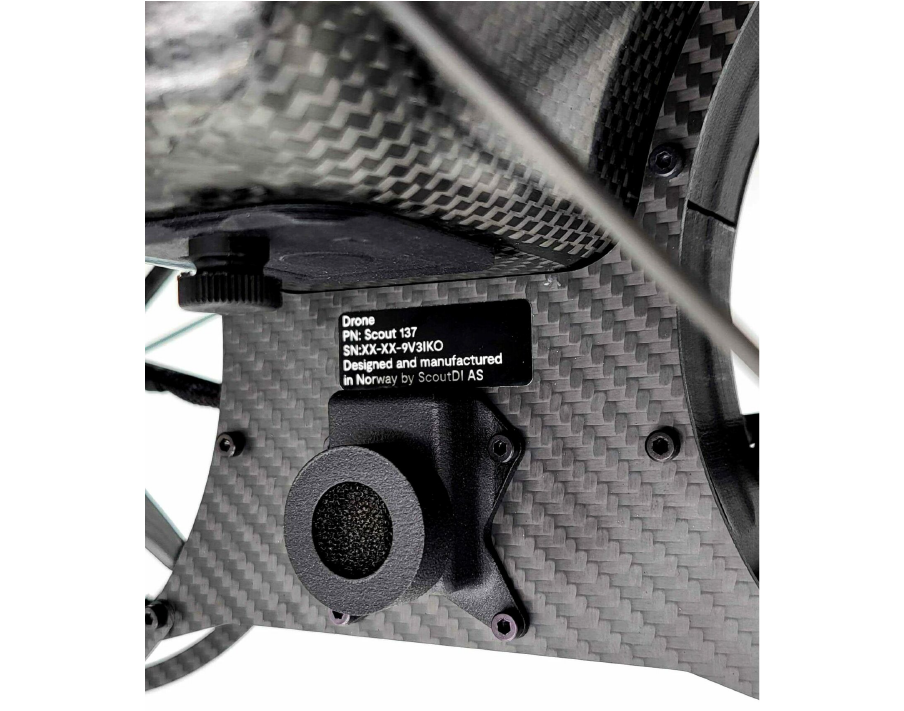

The Scout Flammable Gas Sensor for the Scout 137 Drone is a specialized drone-mounted device that detects and alerts operators to flammable gases in the environment, forming an essential part of the ScoutDI confined-space inspection ecosystem. Key features include real-time warnings for enhanced safety, a lifespan of over 15 years with low ownership costs, no need for field calibrations due to factory calibration and built-in self-testing, additional ambient temperature readings, and compliance with IEC 60079-29-1:2016, with ongoing certification for EN50271.
The sensor ensures accurate detection for methane and hydrogen across a wide range of environmental conditions. Other gases typically meet published tolerances, primarily under standard conditions (20˚C, 50% Relative Humidity). The sensor’s accuracy is validated against ISO 10156 standards.
| Gas | Formula | Class | Detection Range [% LEL] | Accuracy (0-50 % LEL) |
|---|---|---|---|---|
| Butane | C4H10 | 4 | 0-100 | ±5 |
| Ethane | C2H6 | 4 | 0-100 | ±5 |
| Hydrogen | H2 | 1 | 0-100 | ±5 |
| Isobutane | HC(CH3)3 | 4 | 0-100 | ±5 |
| Isobutylene | C4H8 | 4 | 0-100 | ±5 |
| Isopropanol | C3H8O | 4 | 0-100 | ±10 |
| Methane | CH4 | 3 | 0-100 | ±3 |
| Methyl Ethyl Ketone | C4H8O | 5 | 0-100 | ±5 |
| Octane | C8H18 | 6 | 0-100 | ±12 |
| Pentane | C5H12 | 5 | 0-100 | ±5 |
| Propane | C3H8 | 4 | 0-100 | ±6 |
| Propylene | C3H6 | 4 | 0-100 | ±5 |
| Toluene | C7H8 | 6 | 0-100 | ±12 |
| Xylene | C8H10 | 6 | 0-100 | ±12 |
The Gas Sensor is intended to be an additional safety measure, complementing existing safety protocols. It is not designed as a primary means for combustible gas or gas leak detection.
The Gas Sensor integrates with the Scout 137 Drone System, enhancing operational safety through:
