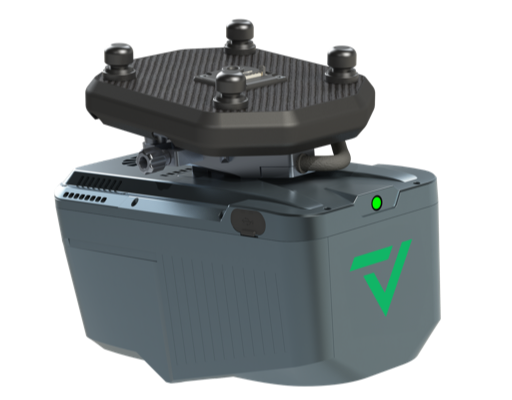

TrueView 540

    TrueView 540

    $1.00
    Ask about this product
    Developed through the collaboration of GeoCue and CHC Navigation, the TrueView 540 delivers engineering-grade LiDAR performance at a cost-effective price point. Combining dense point cloud generation, precise laser scanning, and flexible software options, the TrueView 540 is redefining what’s possible in accessible geospatial mapping.

    Scanner Precision

    Returns

    Operation Temperature

    Camera Sensor

     5 mm

    Up to 8

      -20° to 50° C

    45MP




    Advanced Data Collection Capabilities


    The TrueView 540 combines advanced LiDAR and high-resolution imagery for comprehensive data collection. At its core is a CHCNAV single-beam laser scanner operating at a 1535 nm wavelength, capable of capturing up to 8 returns per pulse. With a maximum usable LiDAR range of 400 meters for targets with greater than 20% reflectivity and a pulse repetition rate of up to 500 kHz, the system delivers dense, high-quality point clouds ideal for demanding geospatial applications.



    Key Features

    TrueView 540 – Key Features
    Feature Details
    Data Collection LiDAR + Imagery
    Laser Scanner CHCNAV single beam laser scanner - 1535 nm wavelength
    LiDAR Beams / Returns Up to 8
    Usable Range 400 m for targets with > 20% reflectivity
    Positioning and Orientation System CHC
    Pulse Repetition Rate Up to 500 kHz
    Scanner Precision 5 mm
    Scanner Accuracy 15 mm
    GNSS/INS Position Accuracy 10-20 mm
    GNSS/INS Angle Accuracy Angle: 0.006° Roll/Pitch, 0.019° Heading
    System Accuracy The TV540 incorporates CHC's PPK navigation solution combined with the scanner's 5 mm repeated ranging accuracy, the system achieves exceptional absolute accuracy from 2 to 5 cm.
    System Operation Temperature Range -20° to 50° C
    Camera Sensor 45 MP Global Shutter Full frame Camera
    Mass 1.9 Kg for the payload only
    2.15 Kg with accessories



    Featured Applications


    • Mapping in densely vegetated terrain

    • Coal pile volumetrics and inventory management

    • High-resolution scans of vertical structures



    What’s Included


    Each TrueView 540 package comes with everything needed to begin high-quality 3D data collection and processing:

    • TrueView 540 LiDAR/Camera Payload

    • GNSS Antenna

    • Battery and Charger

    • USB Thumb Drive

    • Rugged Sensor Hardcase

    • LP360 Drone Software (with Strip Align and Photo Add-Ons)

    • 1-Year Hardware and Software Support



    Drone Platform Compatibility


    It integrates seamlessly with major drone platforms such as:

    DJI. Inspired Flight, Skyfront. Freefly, Wispr, Harris Aerial, XER

    TrueView 3D imaging Sensors are designed and manufactured in our Huntsville, Alabama, USA facilities.
