Written by: Maria Zavarce

Contributor: Lukas Wilgosh

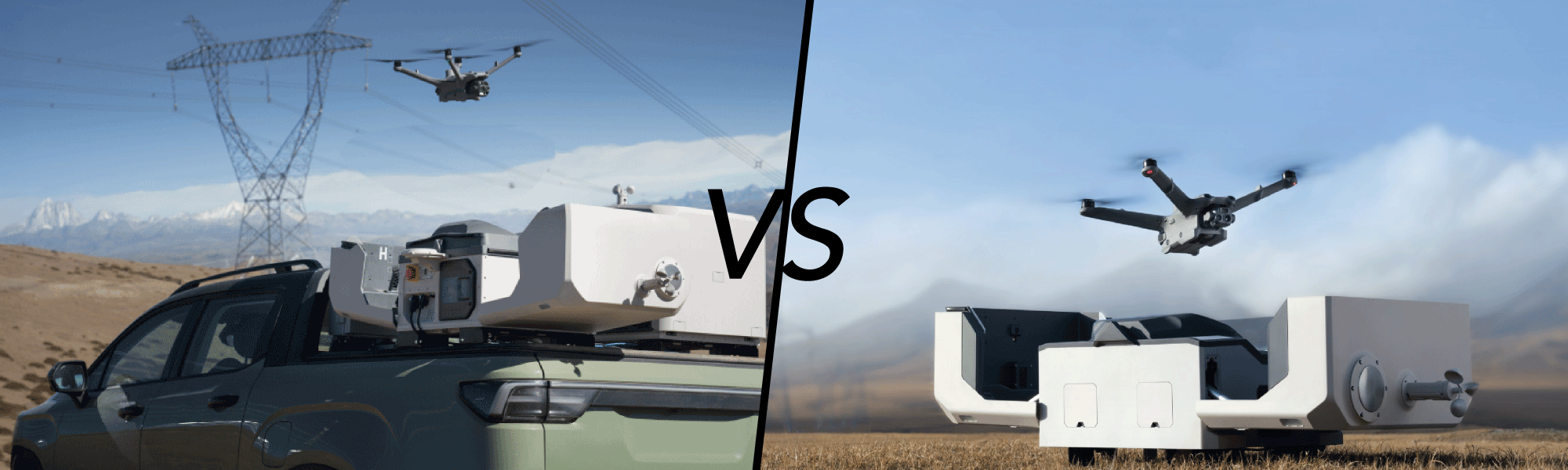

DJI Dock 3 vs DJI Dock 2 Comparison

March 10th, 2025

2 minutes read

With the release of the DJI Dock 3, drone operators in Canada now have access to a vehicle-mounted, mobile-ready docking system optimized for advanced industrial applications. But how does it compare to the DJI Dock 2?

The DJI Dock 3 builds on the success of previous models, introducing mobile deployment capabilities, enhanced endurance, and improved operational flexibility. It is designed for both temporary and permanent setups, making it a versatile solution for industries across Canada, including public safety, emergency response, energy, infrastructure, and precision surveying.



Key Features of the DJI Dock 3:



• First-ever vehicle-mounted dock: Deploy drones from a moving platform, ideal for rapid response and remote operations.

• Dual-dock compatibility: Use two docks on a single vehicle for rotational drone operations.

• IP56-rated weather resistance: Operates in extreme Canadian climates, from -30°C to 50°C.

• Compatible with DJI Matrice 4D & 4TD: Up to 54-minute flight time with thermal and multi-sensor capabilities.

• Airborne relay function: One drone can act as a relay to extend the range of another.

• Pair with DJI FlightHub 2: Remote mission control and automation with ISO 27001-certified security.
Feature DJI Dock 3 DJI Dock 2
Weight 55 kg 34 kg
Dimensions (Open/Closed) 1760 × 745 × 485 mm (open) / 640 × 745 × 770 mm (closed) 1228 × 583 × 412 mm (open) / 570 × 583 × 465 mm (closed)
Compatible Drones DJI Matrice 4D & 4TD DJI Matrice 3D & 3TD
Flight Time 54 min (forward-flight) / 47 min (hovering) 50 min max
Max. Operational Range Extended via airborne relay 10 km
Weather Resistance IP56 (Dock), IP55 (M4D & M4TD drones) IP55
Dual Docking Support Yes – two docks can be deployed from a single vehicle No
Onboard Relay Function Yes – airborne relay via a second drone No
Night Operations Full-colour & B/W night vision (M4TD) Full-colour & B/W night vision (M3TD)
Thermal Camera Yes (M4TD: 640×512, Infrared Super-Res 1280×1024) Yes (M3TD: 640×512, Super-Res 1280×1024)
Laser Rangefinder 1800m measurement range Built-in RTK for precision surveying
Obstacle Sensing LiDAR & millimeter-wave radar Dual RTK antennas & image recognition
Communication & Control DJI RC Plus 2 Enterprise DJI RC Pro Enterprise
Accessory Ecosystem Speaker, spotlight, third-party payloads via E-Port Speaker, spotlight, third-party payloads via E-Port
Remote Mission Control DJI FlightHub 2 (ISO 27001-certified security) DJI FlightHub 2 (ISO 27001-certified security)

DJI Dock 3 Site Planning Checklist
Assess site suitability for DJI Dock 3 Deployment with this checklist
Download Now! Click the link: https://acrobat.adobe.com/id/urn:aaid:sc:US:3534e4ed-5977-487c-b32b-64205ef3d979

What Does This Mean for Canadian Industries?

The DJI Dock 3 offers several advantages for Canada’s demanding industrial applications:

Public Safety & Emergency Response

Faster response times with vehicle-mounted drone deployment for police, fire, and search & rescue operations.
Airborne relay function extends range, allowing real-time monitoring over vast areas.
Thermal and night vision cameras improve visibility in challenging conditions.



Natural Resource & Environmental Monitoring

Extended endurance and relay operations make it ideal for forestry, mining, and environmental research.
 IP56 weather resistance ensures reliable operation in harsh climates.
Dual-dock support allows for continuous drone coverage over large areas.



Surveying & Infrastructure Inspection

Precision LiDAR and rangefinder capabilities enhance land development and infrastructure projects.
Obstacle avoidance reduces the risk of drone collisions in industrial zones.
Seamless integration with DJI FlightHub 2 for automated data collection and analysis.



Oil & Gas, Utilities, and Energy Sectors

Deployed from moving vehicles, making it ideal for pipeline inspections and utility line surveys.
High wind and temperature resistance allow year-round operation.

Multi-sensor payloads improve monitoring of critical infrastructure.



The DJI Dock 3 represents a significant leap forward in drone automation, allowing industries across Canada and worldwide to operate faster, safer, and more efficiently.



With advanced weather resistance, airborne relay capabilities, and vehicle-mounted deployment, the DJI Dock 3 is set to become the new standard for automated drone operations.
