Case Study: How Multispectral Drone Data Improves Fertilizer Efficiency and ROI on Canadian Farms

The Scenario: A Typical Canadian Grain and Oilseed Operation

Consider a representative 3,000-acre operation across the Prairies running a canola, wheat, and pulse rotation. Like most growers in this position, the farm manager applies nitrogen and phosphorus based on whole-field soil tests and a uniform rate. The fields, however, are not uniform: knolls run dry and lean, low spots hold moisture and organic matter, and historic salinity or compaction zones underperform every year. A flat rate over-applies on high-productivity ground and under-feeds the zones that could respond to more nutrient, so dollars leave the field in both directions.

The goal in this illustrative example is not to spray imagery on a marketing slide. It is to convert in-season crop reflectance into a variable-rate prescription that a controller can execute, then to measure the difference at the scale ticket. That requires a sensor capable of resolving real crop stress, not just a colour picture.

Why Multispectral, and Why the Altum-PT

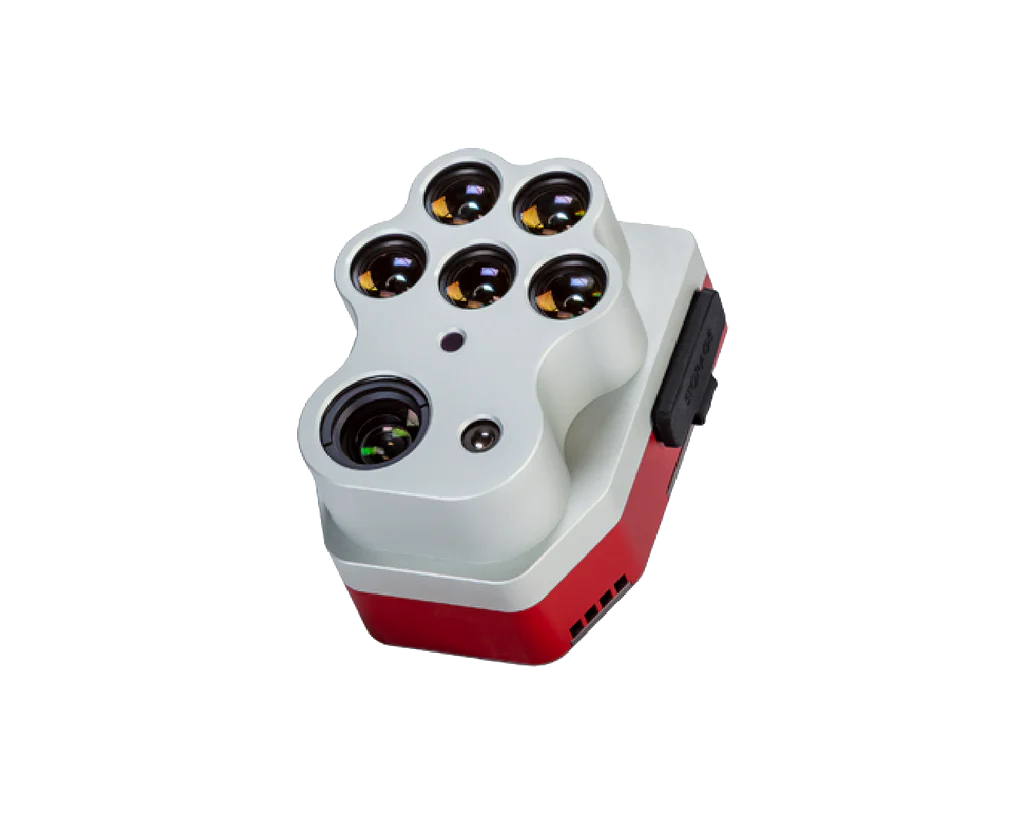

Standard RGB drone imagery shows what the eye already sees. Crop nutrient and water stress, by contrast, often appears first in the near-infrared and red-edge regions of the spectrum, before symptoms are visible from the cab. A purpose-built agricultural sensor like the MicaSense Altum-PT captures five discrete spectral bands, blue (475 nm), green (560 nm), red (668 nm), red edge (717 nm) and near-infrared (842 nm), which together support the vegetation indices growers rely on, including NDVI and red-edge indices that track chlorophyll and nitrogen status.

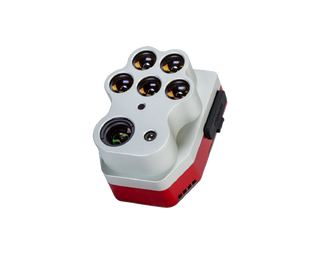

The Altum-PT pairs those bands with a 12.4 MP panchromatic sensor and a 320 x 256 FLIR Boson thermal camera, all captured simultaneously at up to two images per second. Per the manufacturer, panchromatic and pan-sharpened output reaches about 2.49 cm per pixel at a 120 m flight altitude, with the thermal band around 17 cm per pixel from 60 m. That resolution lets an agronomist separate genuine in-field zones from edge noise, while the included DLS2 light sensor and calibrated reflectance panel keep readings consistent flight to flight, which is what makes data from different dates and fields comparable. You can see the full specification set on the Altum-PT product page and compare it against alternatives in our Altum-PT vs. RedEdge-P Dual guide.

From Imagery to a Variable-Rate Prescription

In this scenario, the farm flies key fields at two or three points in the season: pre-application to map baseline variability, in-season to catch developing stress, and ahead of any rescue or top-dress decision. The workflow is straightforward and repeatable.

• Capture: Fly each field, with the DLS2 and calibrated panel correcting for changing light so indices are comparable across dates.
• Process: Build calibrated reflectance maps and vegetation indices, as outlined in our guide to processing multispectral drone data.
• Zone: Translate the indices into three to five management zones that reflect true productivity differences, not just elevation.
• Prescribe: Export a variable-rate prescription to the controller, pushing rate toward responsive zones and pulling it back where added nutrient would not pay.

The red-edge and NIR bands do the heavy lifting here, flagging nitrogen and chlorophyll shortfalls before they cap yield, while the thermal band helps separate water stress from nutrient stress, an important distinction when you are deciding whether more fertilizer will actually help. Our companion guide, Maximizing Crop Yields with the Micasense Altum-PT, walks through this in more depth.

The ROI Picture: Input Savings and Yield Protection

The return shows up in two places. First, input savings: by trimming over-application on already-strong ground, growers commonly target single-digit to low-double-digit percentage reductions in fertilizer use on the zones that do not respond, without sacrificing yield. Second, yield protection: redirecting that nutrient, or catching an emerging deficiency in time to top-dress, helps weaker zones reach their realistic potential rather than dragging the field average down.

The illustrative table below frames how the math tends to work. These are representative ranges to support planning, not audited results, and every farm should validate against its own soil tests, agronomy, and commodity prices.

For a 3,000-acre operation, even a modest per-acre net gain from reduced inputs plus protected yield can offset the cost of a sensor and processing within a season or two, particularly when the same data feeds scouting, drainage planning, and end-of-season variability mapping. The point is not a single headline number, it is a repeatable, defensible process for spending fertilizer where it earns a return.

Fitting It Into the Operation

Most operations already fly a DJI Enterprise platform, and the Altum-PT is designed to integrate with that ecosystem, as covered in our guide on integrating MicaSense sensors with DJI Enterprise drones. Retailers and agronomy service providers can offer this as a managed prescription service across many clients, while larger farms often bring it in house. Either way, the sensor sits within Measur's broader agriculture drone lineup and the full MicaSense range, and our pillar resource on precision agriculture with MicaSense covers the wider toolset. To size the right configuration for your acreage and rotation, request a quote and we will scope it with you.
