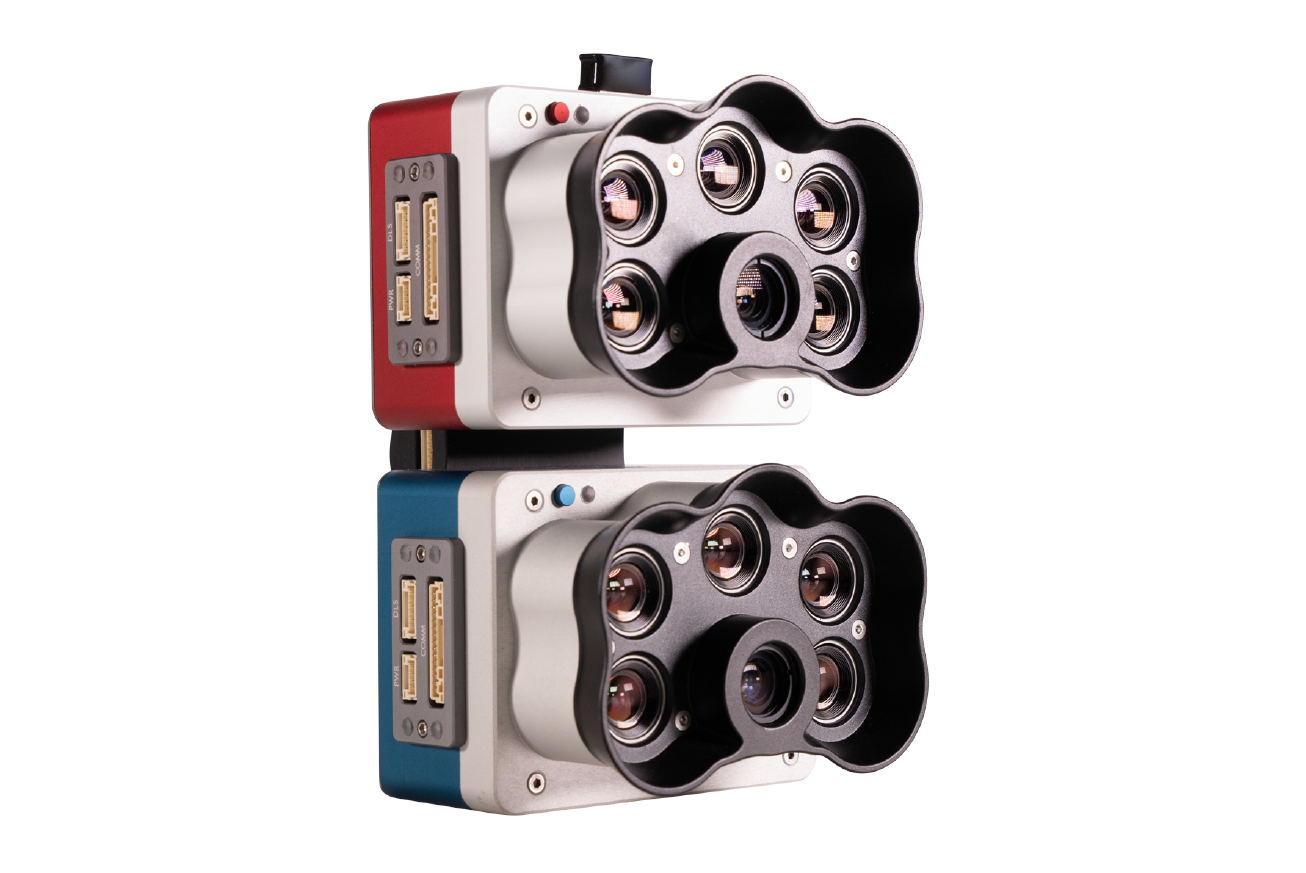

High-Resolution Environmental Monitoring with the MicaSense RedEdge-P Dual

What the 10-Band Dual-Camera Setup Actually Captures

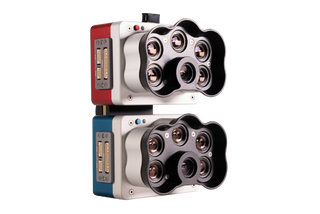

The MicaSense RedEdge-P Dual combines two co-registered imager arrays plus a high-resolution panchromatic band into one calibrated payload. The result is ten discrete spectral bands captured simultaneously, each with a global shutter for distortion-free imagery. The published center wavelengths and bandwidths (in nanometres) are:

Each multispectral band records at 1.6 MP (1456 x 1088), while the 5.1 MP panchromatic band (2464 x 2056) drives pan-sharpening. At 120 m / ~400 ft AGL, the native ground sample distance is 7.7 cm per pixel per multispectral band and 3.98 cm per pixel for the panchromatic band. Pan-sharpening fuses the two, and at 60 m / 200 ft AGL the system reaches roughly 2 cm (0.8 in) per pixel, far finer than the metre-scale detail satellite platforms such as Landsat or Sentinel resolve from orbit.

Extra Bands vs. Single-Sensor RedEdge-P Units

The standard single-array RedEdge-P captures five narrow multispectral bands (blue, green, red, red edge, near-infrared) plus the panchromatic band. The Dual adds a second synchronized array, doubling the multispectral count to ten. For research, the practical gains are specific:

• Coastal blue (444 nm): penetrates shallow water and improves discrimination of aquatic vegetation, sediment, and chlorophyll signatures that single-sensor units cannot isolate.
• Dual green and dual red edge bands: two green (531 nm, 560 nm) and two red edge (705 nm, 717 nm) bands sharpen sensitivity to chlorophyll concentration and vegetation stress, which is central to species-level classification.
• Dual red and dual near-infrared bands: finer sampling across the red and NIR shoulder supports more robust vegetation indices and better separation of canopy types.

If you need even finer spectral granularity, the 15-band RedEdge-P Triple extends this approach further, while the broader MicaSense lineup and our wider multispectral camera collection cover adjacent thermal and agronomy use cases.

Research Workflows for Forestry and Species Identification

The ten-band stack is built for supervised classification. With narrow, well-separated bands across the visible, red edge, and NIR regions, researchers can train machine-learning classifiers to distinguish conifer from deciduous stands, flag invasive species, and map canopy health gradients. A typical workflow runs from flight planning, through synchronized 10-band capture at up to 3 raw DNG images per second, into a photogrammetry and analytics pipeline that outputs orthomosaics, reflectance maps, and indices such as NDVI, NDRE, and OSAVI. Our guide on processing multispectral drone data for actionable insights walks through that post-processing chain in detail.

Reliable Reflectance for Time-Series Studies

Long-term forestry and ecology monitoring depends on data that is comparable across flights, seasons, and changing skies. The RedEdge-P Dual uses a double radiometric calibration system: a DLS 2 downwelling light sensor records incident light in flight, and a calibrated reflectance panel anchors each dataset. This combination is what makes dependable multi-date change detection possible. For the wider context on multispectral methodology, see our pillar guide on precision agriculture and forestry with MicaSense sensors.

Water and Coastal Analysis

The coastal blue band is the headline feature for aquatic and coastal scientists. At 444 nm it penetrates the water column more effectively than standard blue, enabling shallow-water bathymetric estimation, submerged aquatic vegetation mapping, and detection of algal and chlorophyll signatures along shorelines and inland water bodies. Paired with the dual red edge and NIR bands for delineating the land-water boundary, the Dual supports riparian buffer assessment, wetland monitoring, and water-quality screening from a single flight.

Platform Integration and Field Specs

The complete system weighs 745 g (including both sensors, mounting hardware, DLS 2, and cable) and measures 13.2 x 8.8 x 9.67 cm, mounting on enterprise platforms such as the DJI Matrice 300. It records to a CFexpress card, accepts 7.0 V to 25.2 V external power, and carries an IP4X rating. Because MicaSense sensors are manufactured in the U.S. and are NDAA compliant, the Dual suits government, academic, and grant-funded research programs with procurement restrictions. For integration specifics, our guide on integrating MicaSense sensors with DJI Enterprise drones covers mounting and triggering. If thermal data also matters to your study, compare options in Altum-PT vs. RedEdge-P Dual before you reach out to our team about the RedEdge-P Dual.
