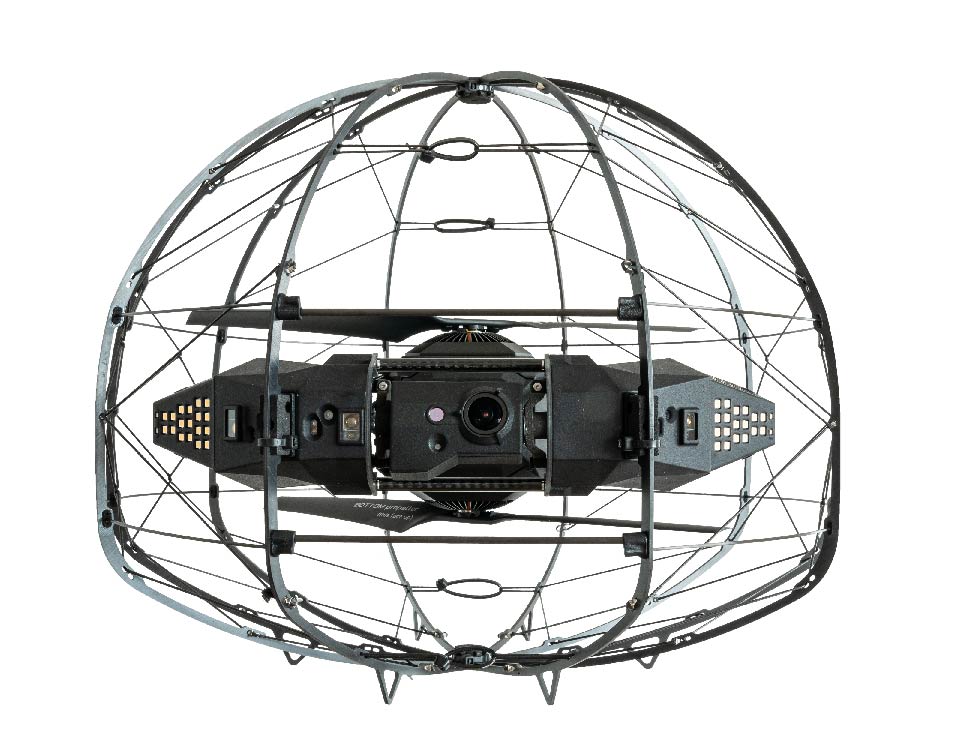

Navigating Complex Indoor Environments with the Flybotix ASIO X

Why conventional drones struggle indoors

Indoor and confined environments strip away the things an outdoor drone relies on. GPS is obstructed by steel and concrete, lighting is poor or absent, and clearances are measured in centimetres. A standard quadrotor uses four small, fast-spinning, exposed propellers; the moment one touches a tube, a hanging cable, or the wall, the aircraft loses control and crashes. Recovering a downed drone from inside a tank or a raise often means sending a human into exactly the space you were trying to keep them out of.

The Flybotix ASIO X is engineered around those constraints rather than in spite of them. It belongs to a small class of purpose-built confined space drones that prioritise collision tolerance and operator safety over outright speed or range, and it is a natural fit for the workflows we cover in our pillar guide on confined space inspections.

The coaxial dual-rotor advantage

Most indoor inspection drones use quadrotor technology with tiny propellers. Flybotix's patented propulsion system instead uses two large coaxial, reclining propellers—a configuration that combines the simplicity of a multirotor with the efficiency of a helicopter. That delivers three concrete benefits inside a vessel or shaft.

• Extended flight time. The ASIO X flies for up to 24 minutes, roughly twice the on-site time of typical indoor inspection drones. More minutes in the air means more wall scanned per sortie, fewer battery swaps, and greater reachable range from the launch point.
• Reduced noise. Larger propellers turn more slowly, so the ASIO X generates only about 80 dB at 1 m. When a pilot is operating in the same confined, metallic space as the aircraft—an oil tank, for instance—that lower noise floor is a real comfort and safety gain.
• Redundancy. A quadrotor has no propulsion redundancy; lose one prop and it crashes. The ASIO X's coaxial rotor architecture keeps control and propulsion redundant, so if an incident occurs the aircraft can still land safely instead of falling.

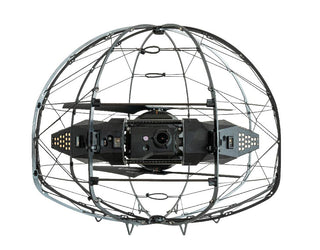

A collision-proof protective cage

Flying out of sight in a cluttered interior, contact with surfaces is not a risk to be avoided—it is a near certainty. The ASIO X's 360-degree cage shields the propellers from the environment and from the cage itself, protecting the aircraft, the asset, and the workers nearby. Crucially, Flybotix kept the cage under 100 g (3.5 oz) by combining the damping of an automotive-grade polymer composite with the stiffness of defense-grade strings, so protection does not come at the cost of flight time. If a cage does get damaged, it is designed to be replaced in under five minutes, keeping the aircraft's availability rate high on a multi-day shutdown.

Sensor suite: seeing in the dark

An inspection drone is only as good as the evidence it brings back. The ASIO X carries a layered payload built for industrial interiors.

The thermal channel matters because some defects—delamination, moisture ingress, electrical hot spots—are invisible to the eye but critical to asset integrity. Pairing 4K RGB with FLIR thermal lets a single flight feed both a visual condition report and a predictive-maintenance workflow.

GPS-free intelligence

With GPS unavailable indoors, the ASIO X stabilises itself from its onboard sensor array, holding position even in complex geometry. Wall-Lock holds a constant standoff distance and attitude so the pilot adjusts only horizontal speed, and Wall-Scan automates coverage of an entire surface. A Rewind function flies the aircraft autonomously back along its inbound path, with auto-landing at the takeoff point. Obstacle repulsion, safety slowdown, and self-righting round out a safety stack designed to bring the aircraft home intact. For teams weighing how to capture geometry in these spaces, our guide on LiDAR vs. photogrammetry in GPS-denied environments is a useful companion read.

Caged vs. tethered: where each wins

Tethered drones offer effectively unlimited endurance and a hardwired data link, valuable for fixed, long-duration overwatch. But inside a complex, obstacle-dense interior, the tether itself becomes the liability. A cable can snag on internal structure, restrict how freely the aircraft can manoeuvre around baffles and piping, and pull the drone off-station. A free-flying caged platform like the ASIO X goes where a tether cannot follow—up a raise, around a manway, behind an obstruction—and its cage absorbs the incidental contact that confined navigation makes unavoidable. For continuous, station-keeping inspection, a tethered platform may be the better fit, as our guide on continuous tethered inspection explains; the right choice depends on whether you prioritise endurance at a fixed point or agility through a tortuous interior.

How it compares to the Dronut X1

Buyers cross-shopping confined-space platforms often weigh the ASIO X against the Cleo Dronut X1, a bi-rotor ducted-fan drone with no exposed propellers. The Dronut X1 is the more compact option—420 g and just 6.5 in x 4.0 in—and adds an onboard 3D LiDAR module that exports a point cloud of the inspected interior. The ASIO X counters with markedly longer endurance (up to 24 minutes versus 17), a 4K RGB sensor paired with integrated FLIR thermal, and far brighter onboard lighting. In practice, the Dronut X1 suits the tightest openings and jobs that need a quick point cloud, while the ASIO X suits longer missions over large surfaces where flight time, thermal data, and lighting drive the deliverable.

The business case

Every minute a caged drone spends in a vessel is a minute a worker does not spend rigging scaffold, donning SCBA, or entering a permit-required space. That translates directly into the savings we detail in reducing scaffolding costs with drone inspections and into the compliance gains covered in ensuring safety compliance during indoor drone operations. To scope a platform against your assets, our team can help you request a quote and match the ASIO X to your inspection program.
