LiDAR vs. Photogrammetry in GPS-Denied Environments: Choosing the Right Capture Method for Indoor Digital Twins

Why GPS-Denied Capture Is a Different Problem

Outdoor mapping leans on GNSS and RTK to geo-reference every image or laser return. Inside a steel tank or underground stope, those signals are gone, and the floor, walls, and ceiling all look similar to a sensor. Two things now have to be solved at once: where the drone is (positioning) and what the asset looks like (the model). The capture method you choose determines how well a platform handles both in the dark, dusty, feature-poor conditions typical of confined-space industrial assets.

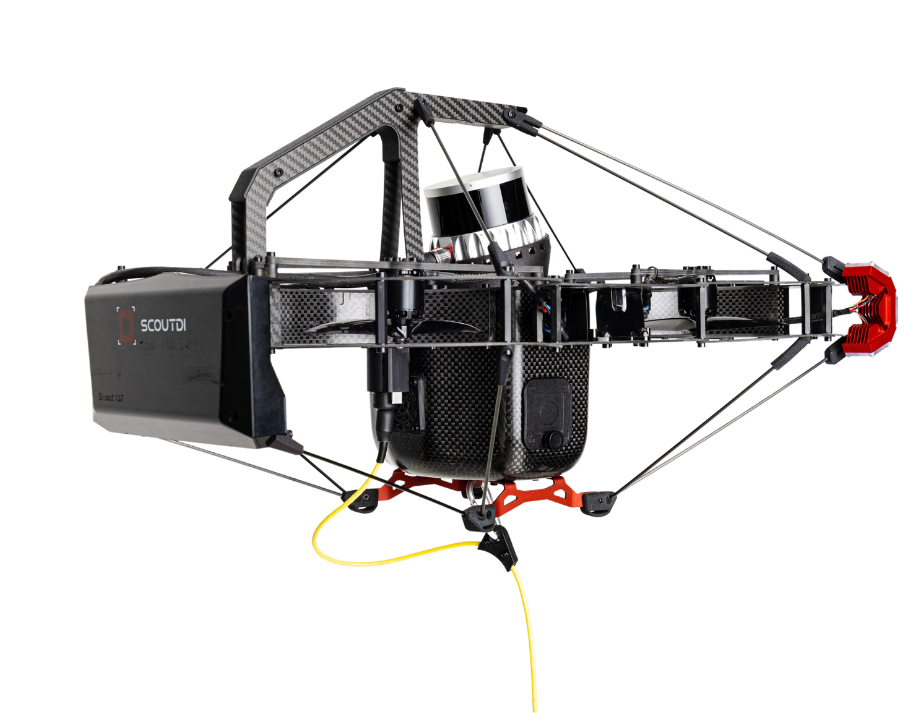

This is why purpose-built indoor platforms such as the ScoutDI Scout 137 and the Flybotix ASIO X exist as a distinct category from outdoor survey drones. For a broader view of the discipline, our pillar guide on confined space inspections covers planning, safety, and workflow end to end.

Lighting Independence: LiDAR's First Advantage

Photogrammetry reconstructs 3D geometry from overlapping 2D photos, so it is only as good as the light hitting the surface. In a windowless vessel, that means the drone has to carry enough illumination to expose every frame consistently. Shadows, hot spots, and reflective steel all degrade the photo set, and a single poorly lit pass can leave holes in the model.

LiDAR is an active sensor: it emits its own laser pulses and times the return, so it captures geometry whether the lights are on or off. That makes it inherently more reliable in total darkness. Both platforms above carry onboard lighting regardless, because operators still want clean visual imagery for defect review. The ASIO X, for example, offers a dimmable 40,000-lumen lighting system to make the darkest spaces as clear as daylight, and the Scout 137 carries its own onboard illumination for visual inspection. The difference is that LiDAR does not depend on that light to produce metric geometry, while photogrammetry does.

SLAM: How Positioning Works Without GPS

With no satellite fix, indoor drones rely on SLAM (Simultaneous Localization and Mapping) to estimate position while building the map. SLAM can be driven by cameras (visual-inertial odometry), by LiDAR, or by a fusion of sensors.

The ASIO X stabilizes and positions itself in GPS-denied environments using an integrated IMU, radar, VIO cameras, and optical sensors mounted around the airframe, using position and movement data in place of GPS. The Scout 137 runs built-in SLAM and generates point clouds through its Scout Portal software, using a 3D LiDAR sensor for navigation and positioning. For teams that want to go deeper, see our guides on continuous inspection with the Scout 137 and navigating complex indoor environments with the ASIO X.

The practical takeaway: LiDAR-assisted SLAM tends to hold position better in feature-poor, low-texture spaces because it measures real geometry rather than inferring it from image features that may not exist on a clean steel wall.

Accuracy and Deliverables

For a digital twin, the question is not just point density but how trustworthy each measurement is. LiDAR returns direct range measurements, so distances, clearances, and defect dimensions come straight from the sensor. Both platforms here use LiDAR for measurement: the Scout 137 carries a standard 3D LiDAR sensor with built-in SLAM, and the ASIO X carries an orientable 3D LiDAR with a 106° x 86° field of view on a payload that tilts up to 90° up and down, producing point clouds for asset localization and defect measurement.

Photogrammetry can deliver photorealistic, high-resolution texture that LiDAR alone cannot, which matters for visual condition assessment and documentation. The two are complementary: LiDAR for trustworthy geometry, imagery for visual detail. The table below summarizes the trade-offs.

When Each Method Wins

Choose LiDAR-led capture when

• The asset is dark, dusty, or has reflective or low-texture steel surfaces.
• You need dependable dimensional accuracy for clearances, thickness mapping, or defect sizing.
• Positioning stability matters in a tight, feature-poor confined space.
• You want a usable point cloud quickly rather than waiting on heavy reconstruction.

Lean on photogrammetry (or fused capture) when

• High-resolution visual texture is the deliverable, for example crack mapping, corrosion grading, or as-found documentation.
• Lighting can be controlled and surfaces carry enough visual detail to match.
• You are augmenting a LiDAR base model with photorealistic context.

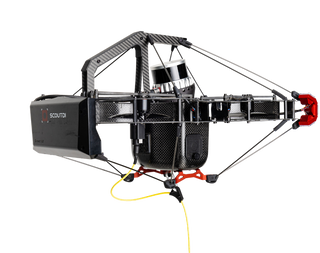

In most GPS-denied industrial work, the strongest digital twins combine both: LiDAR for the dependable geometric backbone, 4K imagery for visual review. The Scout 137 pairs its LiDAR with a gimbal-stabilized 4K camera with optical zoom, and its tethered design delivers continuous flight time with no battery swaps, which suits long, methodical interior surveys. The ASIO X, with its collision-proof protective cage and up to 20 minutes of flight per battery, is built to bump and recover in cluttered geometry.

Matching the Platform to the Asset

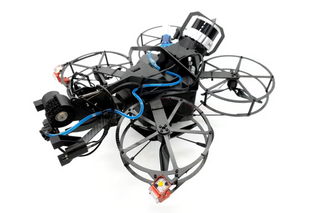

Capture method and airframe are linked. A collision-tolerant caged drone like the ASIO X tolerates contact with internal structure, while a tethered system like the Scout 137 trades range for unlimited endurance and guaranteed power. Both are part of our confined space drone range. If your program is weighing access scaffolding against drone deployment, our note on reducing scaffolding costs and downtime and the case study on digitizing a Canadian mining operation are useful starting points. Operators planning indoor flights should also review our guidance on safety compliance during indoor drone operations. When you are ready to scope a system against your specific assets, browse our confined space drone range and contact our team to match a platform to your project.
