The DJI Matrice 4 Series splits into two distinct families: handheld, remote-piloted drones (the 4E and 4T) and dock-deployable airframes built for autonomous, around-the-clock operation (the 4D and 4TD). Within each family, the choice comes down to payload — a mapping-grade RGB camera array or a thermal-and-zoom inspection package. This guide breaks down the integrated cameras, the dock-compatible variants, and how to match a model to mapping, inspection, or autonomous-dock workflows.
Two families, four airframes
Before comparing cameras, it helps to understand how the Matrice 4 Series is organized. The lineup is two pairs of drones built around the same compact airframe and the same triple-camera concept, but tuned for very different deployment models.
- Remote-piloted drones — the Matrice 4E and Matrice 4T are flown from a hand-held controller for crewed field missions.
- Dock-deployable drones — the Matrice 4D and Matrice 4TD are purpose-built to live inside the DJI Dock 3 for unattended, repeatable flights.
Within each pair, the letter tells you the payload: the "E" and "D" models carry a mapping-oriented RGB array, while the "T" and "TD" models add a thermal sensor for inspection and public safety work.
Integrated cameras: mapping (4E / 4D) vs thermal and zoom (4T / 4TD)
Matrice 4E and 4D — the mapping array

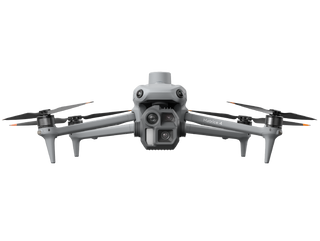

The 4E and its dock counterpart, the 4D, lead with a 4/3-inch, 20 MP wide camera fitted with a mechanical shutter — the configuration surveyors expect for distortion-free photogrammetry and large-area orthomosaics. That wide camera is paired with a 48 MP medium-tele camera and a 48 MP telephoto camera, giving operators a single airframe that can capture both broad coverage and fine detail. There is no thermal sensor on these models; their job is accurate, high-resolution RGB capture.
Matrice 4T and 4TD — thermal plus zoom
The 4T and 4TD swap the mapping-tuned wide camera for an inspection package. They retain the medium-tele and 48 MP telephoto cameras for long-range visual zoom, and add a 640×512 thermal camera (with a higher-resolution infrared mode on the 4TD). Both inspection variants also carry a laser rangefinder with an 1800 m measurement range, so crews can geolocate a point of interest — a hot spot on a substation, a missing person in dense brush — without flying directly over it. If you are weighing the integrated thermal sensor against a modular payload, our guide on thermal inspection: Zenmuse H30T vs. Matrice 4TD works through that trade-off in detail.
| Model | Family | Primary payload | Thermal | Best for |
|---|---|---|---|---|
| Matrice 4E | Remote-piloted | 20 MP wide (mechanical shutter) + 48 MP tele array | No | Mapping, photogrammetry, survey |
| Matrice 4T | Remote-piloted | Wide + 48 MP tele + 640×512 thermal | Yes | Inspection, public safety |
| Matrice 4D | Dock-deployable | Mapping RGB array (4E payload) | No | Autonomous mapping / monitoring |
| Matrice 4TD | Dock-deployable | Thermal + zoom (4T payload) | Yes | Autonomous thermal inspection |
What makes the 4D and 4TD different
The dock-compatible variants share the same cameras as their handheld siblings, but the airframe is hardened for unattended life cycles. DJI rates the 4D/4TD aircraft at IP55 for dust and water ingress and quotes a longer maximum flight time (up to 54 minutes) than the remote-piloted models. They are designed to take off from, return to, and recharge inside the DJI Dock 3 with no crew on site.
The Dock 3 itself is built for harsh, remote, and even mobile deployment. It carries an IP56 rating, operates across a wide temperature band (roughly -30°C to 50°C), and — notably for Canadian field operators — supports vehicle-mounted deployment so a crew can relocate the entire system between sites. Paired with DJI FlightHub 2, the dock enables scheduled, repeatable 24/7 missions. For a full walkthrough of unattended workflows, see our guide on automating remote inspections with DJI Dock 3.
Matching a model to your workflow
If your work is mapping and survey
Choose the Matrice 4E for crewed survey missions where you carry the drone to each site. Its mechanical-shutter wide camera and RTK positioning (down to centimetre-level accuracy with a base) are built for accurate orthomosaics and 3D models. If you need that same RGB capture to run on a schedule — stockpile volumes, construction progress, recurring corridor flights — the Matrice 4D in a Dock 3 removes the crew from the equation. Operators who need true LiDAR point clouds rather than photogrammetry should also review our guide on high-accuracy aerial mapping with the Zenmuse L3 LiDAR on the larger Matrice platform.
If your work is inspection or public safety
Choose the Matrice 4T when a pilot is on scene — powerline and solar inspections, search-and-rescue, tactical overwatch — and you need thermal, long-range zoom, and a laser rangefinder in one airframe. When the asset is fixed and the value is in constant coverage, such as a substation, pipeline yard, or perimeter, the Matrice 4TD in a Dock 3 delivers the same thermal-and-zoom capability on an autonomous schedule.
If you are standardizing a fleet
Because all four drones share an airframe, controller ecosystem, and software stack, mixed fleets are practical: a survey team can run 4E units while an inspection team runs 4T units, and a monitoring program can layer Dock 3 sites with 4D or 4TD aircraft — all managed through the same pipeline. For the broader enterprise context, our pillar resource, The Complete Guide to DJI Enterprise Drones & Payloads, maps these airframes against DJI's full payload range, and teams scaling into docks or larger platforms should read Deploying the DJI Matrice 400.
Don't forget the regulatory layer
Airframe choice is only part of a compliant operation. Autonomous and beyond-visual-line-of-sight dock deployments carry different obligations than crewed flights under Canadian rules. Before committing to a Dock 3 program, review navigating Transport Canada regulations for DJI enterprise drones so your operating model and your hardware are aligned from day one. When you are ready to spec a system, our team can help you request a quote tailored to your sites and workflows.
Key Takeaways
- The Matrice 4E and 4T are remote-piloted; the 4D and 4TD are built to deploy autonomously from the DJI Dock 3.
- The 4E and 4D carry a mapping RGB array (20 MP mechanical-shutter wide plus 48 MP tele cameras) with no thermal sensor.
- The 4T and 4TD add a 640x512 thermal camera plus zoom and an 1800 m laser rangefinder for inspection and public safety.
- Dock-compatible 4D and 4TD airframes are hardened to IP55 and offer a longer maximum flight time (up to 54 minutes) than the handheld models.
- The DJI Dock 3 is IP56, operates roughly -30C to 50C, and supports vehicle-mounted deployment.
- Choose by workflow: 4E for crewed survey, 4D for scheduled mapping, 4T for crewed inspection, 4TD for autonomous thermal inspection.
- Autonomous and BVLOS dock operations carry distinct Transport Canada obligations — plan the regulatory layer alongside the hardware.
