For public safety teams and utility inspectors, the choice between a flagship payload and an all-in-one aircraft comes down to how far you need to see, how hot the target runs, and how the mission is launched. The Zenmuse H30T mounted on a Matrice 400 delivers the longest reach and highest-resolution thermal DJI offers, while the Matrice 4TD packs a capable multi-sensor suite into a compact, dock-ready airframe. This guide breaks down the sensor suites, radiometric thermal performance, and the operational trade-offs so you can match the platform to the job.
Two paths to the same image
Both platforms answer the same question: where is the heat, and what is causing it? They arrive there very differently. The Zenmuse H30T is a removable multi-sensor gimbal that mounts to a heavy-lift airframe such as the DJI Matrice 400 or Matrice 350 RTK. The DJI Matrice 4TD is a dock-optimized, all-in-one aircraft built around the Matrice 4 Series camera head and engineered for automated, repeatable deployment. Choosing well means understanding what each sensor suite actually resolves in the field.
Sensor suites compared

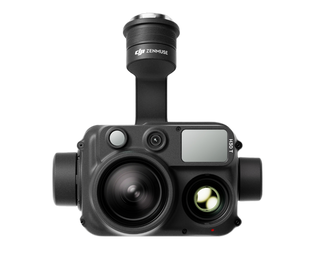

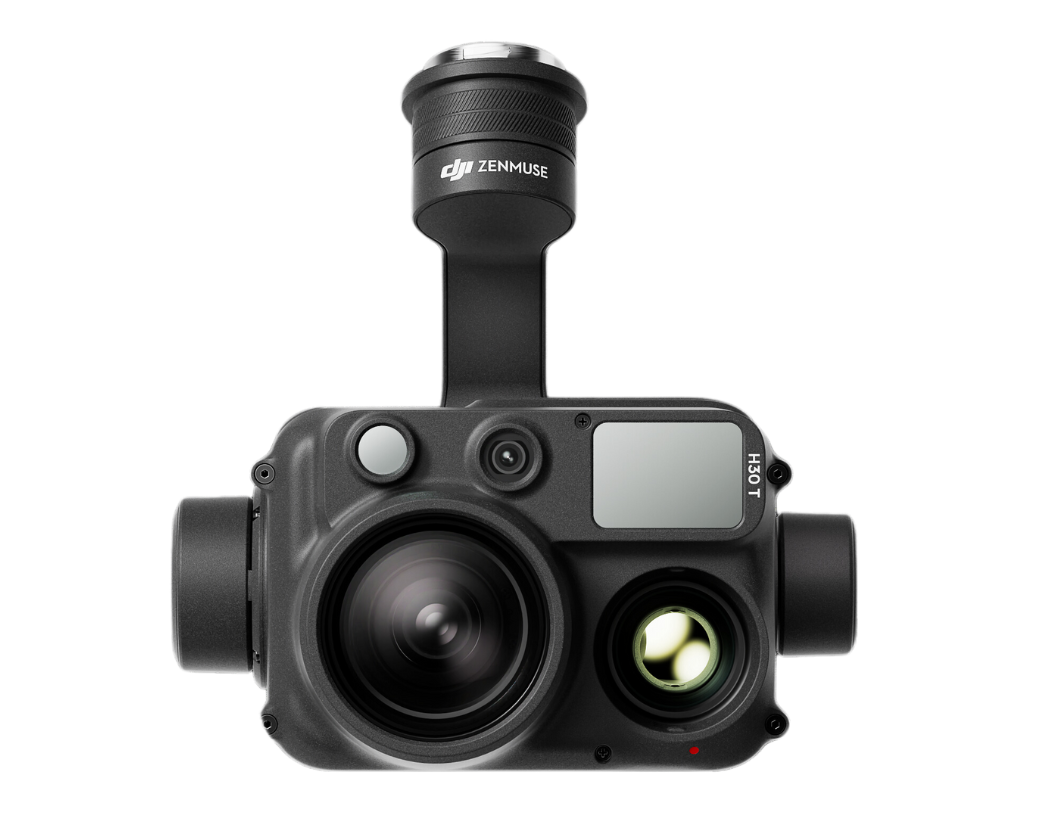

The H30T carries a 48 MP wide camera (1/1.3-inch CMOS), a 40 MP zoom camera (1/1.8-inch CMOS) with up to 400x maximum zoom, a laser rangefinder that ranges from 3 to 3,000 m, and an NIR auxiliary light for low-light operations. Its standout is the 1280 x 1024 radiometric thermal sensor — the highest-resolution thermal imager in DJI's payload lineup.
The Matrice 4TD shares the Matrice 4 Series camera architecture: a 48 MP wide camera, a 48 MP medium tele, and a 48 MP telephoto with 16x digital and up to 112x hybrid zoom, plus a 640 x 512 radiometric thermal camera and an integrated laser rangefinder. It is the same proven imaging stack found in the Matrice 4T, hardened for dock-based, around-the-clock operation.
| Specification | Zenmuse H30T (on M400 / M350) | Matrice 4TD |
|---|---|---|
| Thermal resolution | 1280 x 1024 (radiometric) | 640 x 512 (radiometric) |
| Zoom camera | 40 MP, up to 400x max | 48 MP tele, up to 112x hybrid |
| Wide camera | 48 MP (1/1.3-in CMOS) | 48 MP (1/1.3-in CMOS) |
| Laser rangefinder | 3 - 3,000 m | up to 1,800 m |
| Thermal range (high/low gain) | up to 1,600°C (with filter) | up to 550°C |
| Payload vs. aircraft | Removable payload | Integrated, dock-ready |
| Aircraft IP rating | IP55 (Matrice 400) | Dock-hardened airframe |
Radiometric thermal: how hot, how far
Both thermal cameras are radiometric, meaning every pixel carries a temperature value you can measure, log, and export — essential for energy and utility inspection where you are quantifying, not just visualizing, anomalies. The difference is range and detail. The H30T resolves a far denser thermal grid (1280 x 1024), which lets inspectors detect smaller hot spots at greater standoff distance and measure extreme temperatures up to roughly 1,600°C with the infrared filter engaged — useful for substations, flares, and industrial assets.
The Matrice 4TD's 640 x 512 thermal sensor with high-gain accuracy of ±2°C (or ±2%) covers the vast majority of solar, building envelope, and distribution-line inspections at close to medium range. For most routine patrols, that resolution is more than sufficient; the H30T earns its premium when you need to inspect from farther away or pick out fine thermal gradients.
Use cases by mission type
Public safety and search-and-rescue
For active scenes, the H30T's long-range zoom and NIR light let crews orbit at a safe standoff and still read a license plate or detect a body-heat signature through tree cover. The Matrice 4TD shines in persistent-monitoring roles — perimeter security, recurring overwatch, and rapid first-on-scene response when paired with a dock.
Energy and utility inspection
Transmission corridors, substations, and large solar farms reward the H30T's reach and thermal resolution. Distribution feeders, rooftop arrays, and routine asset checks are well served by the 4TD, especially when the inspection cadence justifies automation. See our guide on automating remote inspections with DJI Dock 3 for the recurring-mission model.
When the payload approach wins
A payload-and-platform pairing wins when you need maximum capability and flexibility. The H30T on a Matrice 400 gives you the longest thermal reach, the densest thermal grid, a 3,000 m rangefinder, and an airframe that supports up to 6 kg of payloads across multiple gimbal connectors — so the same drone can fly LiDAR one day, as covered in our Zenmuse L3 mapping guide, and thermal the next. Explore compatible options in our DJI payload collection and broader thermal drones and sensors range.
When the integrated aircraft wins
The Matrice 4TD wins on speed of deployment, footprint, and cost-efficiency at scale. There is no payload to mount, balance, or store, and the airframe is purpose-built for dock-based autonomy and high-frequency missions. For teams standardizing on a fleet of compact aircraft, the integrated approach lowers training overhead and shortens the time from alert to airborne. Our overview of choosing the right Matrice 4 Series drone helps narrow the variant. Whichever you choose, plan around Transport Canada regulations for DJI enterprise drones and review the full guide to DJI enterprise drones and payloads. To scope a configuration, request a quote from our team.
Key Takeaways
- The Zenmuse H30T offers DJI's highest thermal resolution at 1280 x 1024, versus 640 x 512 on the Matrice 4TD.
- Both cameras are radiometric, giving per-pixel temperature data for true inspection-grade analysis.
- The H30T pairs with the Matrice 400 for the longest reach: 3,000 m rangefinder and up to 400x zoom.
- The Matrice 4TD is a dock-ready, all-in-one aircraft built for automated, high-frequency missions.
- Choose the payload approach for maximum range, resolution, and multi-sensor flexibility.
- Choose the integrated 4TD for fast deployment, smaller footprint, and lower cost at fleet scale.
- For public safety overwatch and long-corridor utility patrols, the H30T's reach is hard to match.
