Drone LiDAR Mapping: High-Accuracy Surveys with the Zenmuse L3

What the Zenmuse L3 Brings to Survey-Grade Mapping

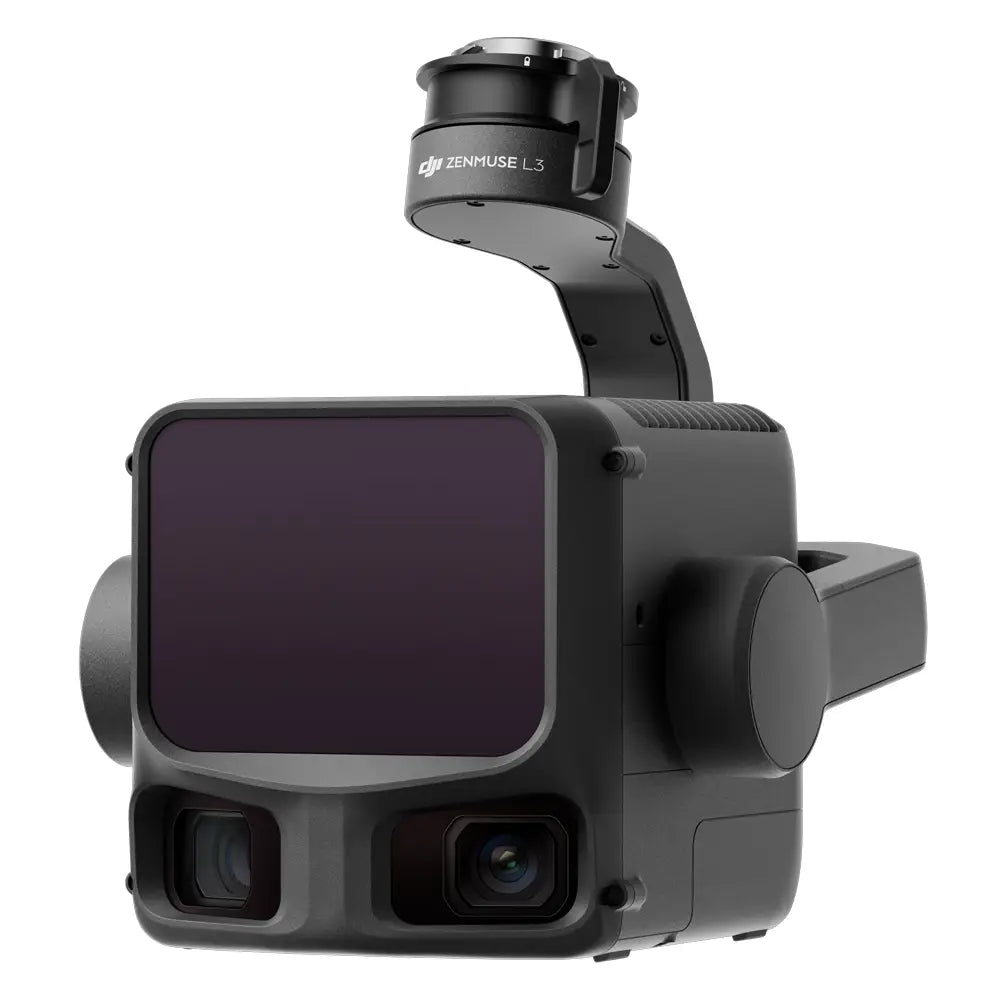

The Zenmuse L3 integrates a 1535 nm long-range LiDAR, dual 100 MP RGB mapping cameras, a high-precision POS (positioning and orientation) system, and a three-axis stabilized gimbal in a single payload. That combination is built for one job: capturing dense, accurate three-dimensional data over large areas in a single mission. DJI rates the L3 for coverage of up to 100 km² per day, which moves it firmly into corridor mapping, large-site earthworks, and regional topographic work.

The 1535 nm wavelength is a deliberate engineering choice. It allows higher laser energy output while remaining eye-safe, which is what enables the L3's long detection range. The sensor reaches a maximum detection range of 950 m at a 100 kHz pulse rate, tested under 100 klx ambient light against objects with just 10% reflectivity. In practice, that supports typical flight altitudes of 300 to 500 m, expanding single-flight coverage and reducing the number of sorties needed to map a site.

Point Density, Returns, and Penetration

The L3 emits up to 2 million laser pulses per second and supports up to 16 returns per pulse. Returns are what separate LiDAR from photogrammetry on vegetated or cluttered ground: each pulse can register multiple surfaces, so the beam can clip a tree canopy, then branches, then bare earth, all from one shot. Sixteen returns means the L3 builds a usable ground model under dense vegetation where a camera only sees the canopy.

A tight laser beam divergence of 0.25 mrad (1/e²) produces a laser spot roughly one-fifth the size of the Zenmuse L2's at the same range. The smaller, higher-energy spot resolves fine features such as power lines, conductors, and individual branches, and its energy density drives stronger penetration through vegetation. Point density and penetration are both adjustable through the pulse rate, so a crew can tune the same payload for high-accuracy mapping or for punching through complex canopy.

RGB Fusion and Scanning Modes

The dual 100 MP RGB mapping cameras do more than colourize the point cloud. True-colour RGB fusion produces deliverables that are far easier to interpret for stakeholders, support feature extraction, and let surveyors validate classification against real imagery. The L3 supports Linear, Star-Shaped, and Non-Repetitive scanning patterns, so operators can match the scan geometry to the job, whether that is a clean linear corridor or a complex structure that benefits from multi-angle coverage.

Zenmuse L3 vs. Zenmuse L2: What Changed

The Zenmuse L2 remains a capable survey LiDAR and a strong value for teams flying the Matrice 350 RTK. The L3 is a generational step in range, density, and detail. The table below compares verified manufacturer figures from each product page.

The headline differences are range and density. The L3's longer reach and far smaller laser spot let crews fly higher and still resolve thin features, while 16 returns versus 5 dramatically improves bare-earth modelling under vegetation. For many teams the L2 still answers the brief; the L3 is the choice when you need maximum coverage per flight, finer detail, or both.

Pairing the Zenmuse L3 with the Matrice 400

The L3 is built to fly on the DJI Matrice 400, DJI's next-generation enterprise flagship. The M400 offers up to 59 minutes of flight time, a 6 kg payload capacity, and the O4 Enterprise video transmission system with up to 40 km of range. Its obstacle sensing combines rotating LiDAR, mmWave radar, and fisheye vision, which matters when flying long corridors at altitude. Longer endurance directly extends how much ground each L3 sortie can cover, compounding the sensor's coverage advantage. For a deeper look at the platform, see our guide on deploying the DJI Matrice 400 and how to choose the right airframe for your operation.

The L3 and M400 sit within DJI's broader enterprise ecosystem. Browse the full LiDAR for drones and DJI payload collections, or read the pillar Complete Guide to DJI Enterprise Drones & Payloads for the wider picture. Canadian operators flying at survey altitudes should also confirm authorizations under Transport Canada regulations.

When LiDAR Beats Photogrammetry

Photogrammetry derives 3D structure from overlapping images, which makes it economical and excellent for visual, textured deliverables on bare, open ground. LiDAR measures range directly with a laser, and that distinction decides which tool wins on a given site.

• Vegetated terrain. Multiple returns let LiDAR reach bare earth under tree canopy. Photogrammetry only models the surface the camera can see, so forested and brush-covered sites favour the L3.
• Thin linear features. Power lines, conductors, towers, and railings are difficult to reconstruct photogrammetrically but are captured cleanly by the L3's small, dense laser spot.
• Low light and shadow. An active laser does not depend on consistent ambient lighting or texture, so it performs where imagery struggles.
• Accuracy and repeatability. For construction monitoring, where the same site is flown repeatedly to track earthworks and volumes, LiDAR delivers consistent geometry without reliance on dense ground control.

Photogrammetry still wins on cost and on projects where high-resolution colour orthomosaics are the primary deliverable. The L3's dual RGB cameras blur that line by fusing survey-grade LiDAR geometry with true-colour imagery in one pass, often removing the need to choose. To scope a workflow for your sites, request a quote and our team will help match the payload, airframe, and processing pipeline to your deliverables.
